Description
| Model name | 488CA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Packaging dimensions(L*W*H) | 2350*740*230mm. |

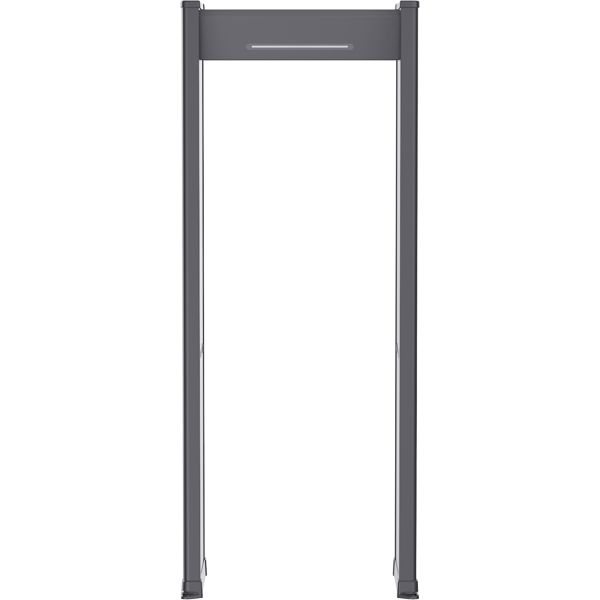

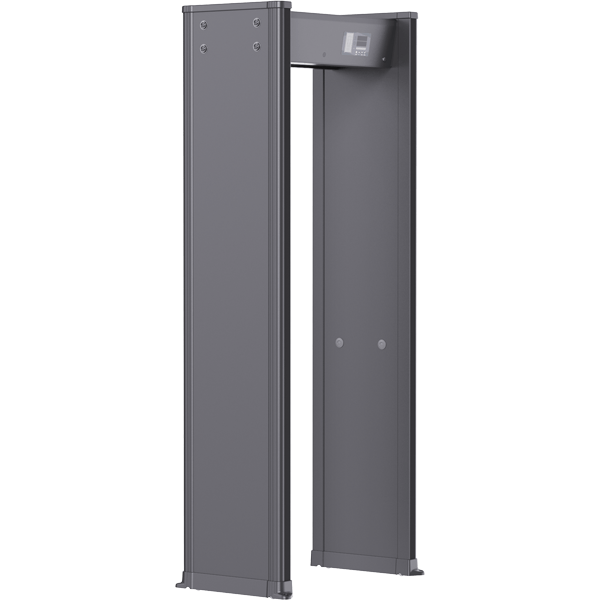

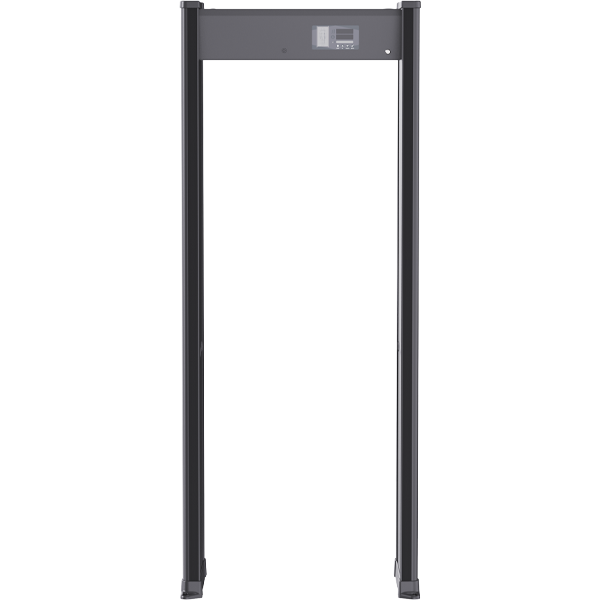

The ProScan Global 488CA is a high-precision security gateway featuring an integrated side panel digital control box. Designed for high-traffic environments that demand both aesthetic integration and elite performance, this model offers multi-zone intelligent detection. With its user-friendly digital interface, the 488CA provides security personnel with real-time data and pinpoint accuracy, making it an essential asset for modern infrastructure, from government offices to premium commercial venues.
Key technical features
- Environmental intelligence: The system is equipped with an environmental data display function. It delivers high performance, high sensitivity, and excellent stability by constantly monitoring and self-adjusting to the surrounding electronic conditions.
- Intelligent object discrimination: Pre-set parameters allow users to adjust the detection sensitivity based on the weight, volume, size, and location of metal objects. This effectively eliminates false alarms caused by personal items like keys, jewelry, and belt buckles.
- Centralized network management: Supports advanced network connectivity, enabling the management and monitoring of multiple 488CA units from a single centralized PC.
- Global safety standards: The system complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.

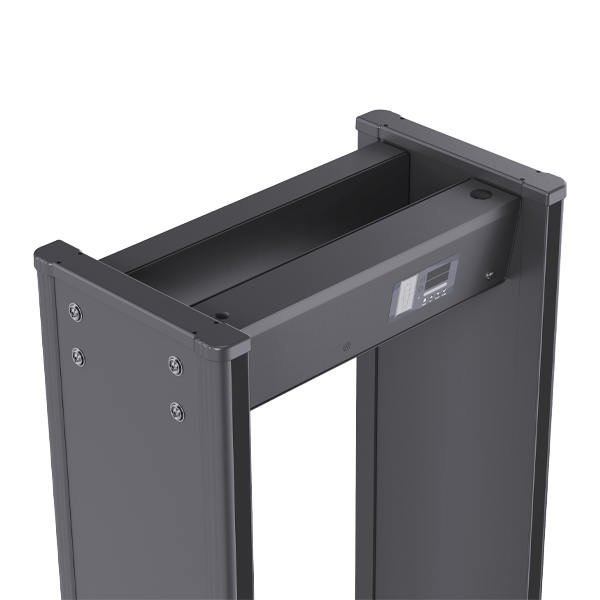

- High-definition digital control: The side-panel mounted digital control box offers a streamlined operating experience, ensuring all detection zones are monitored with high-fidelity accuracy.
Installation condition 488CA
To ensure the 488CA operates at peak reliability, a professional walk through metal detector installation must follow these environmental requirements:
- Stable foundation: The unit must be installed on a flat, solid floor to prevent any vibration that might trigger “ghost” alarms.
- Metal-free zone: Maintain a minimum clearance of 10cm (4 inch) from fixed metal objects. For moving metal structures (elevators, sliding doors), a distance of 0.5m to 2m (20 – 79 inch) is recommended.
- Interference mitigation: Position the detector 0.5m to 4m (20 – 157 inch) away from electronic noise sources like power cables, large motors, or high-power monitors.
- Frequency settings: When deploying multiple units in close proximity, each device must be set to a different working frequency to prevent mutual signal interference.
Certifications
ProScan Global is dedicated to meeting rigorous international quality benchmarks. The 488CA is fully compliant with CE and FCC certifications, ensuring that the hardware meets global standards for safety, health, and electromagnetic compatibility.
After-sales service system
We offer a comprehensive support network designed to empower our clients long after the initial purchase:
- Full-cycle customer care: Our post-sale support includes rapid technical assistance and routine maintenance care to ensure your equipment remains in top operational condition.
- Target market research: As a unique value-added service, ProScan Global provides clients with target market research insights, helping you understand regional security landscapes and optimize your strategic deployment.
Shipping
To ensure global accessibility and the safe transit of our high-precision technology, ProScan Global offers versatile shipping solutions:
- Global shipping modes: We support professional distribution via sea, air, and land freight to accommodate any timeline or budget.
- Secure transit: Every unit is handled with extreme care to guarantee it reaches its destination in perfect condition, ready for immediate integration into your security infrastructure.
