Description
| Model name | 538CD |

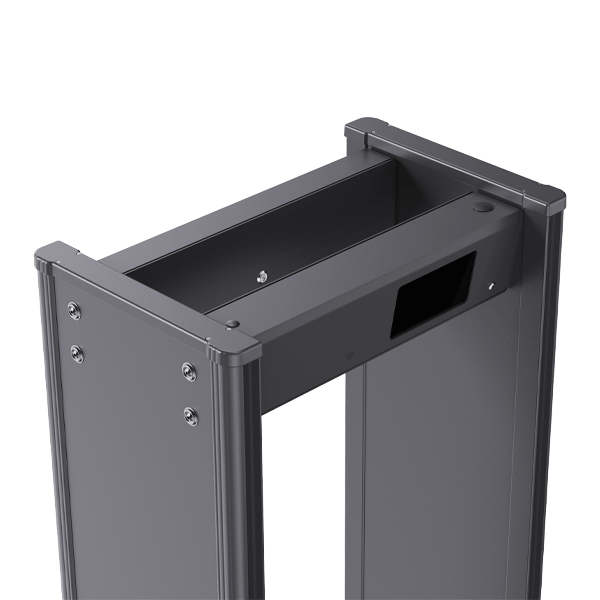

| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Packaging dimensions(L*W*H) | 2350*790*230mm. |

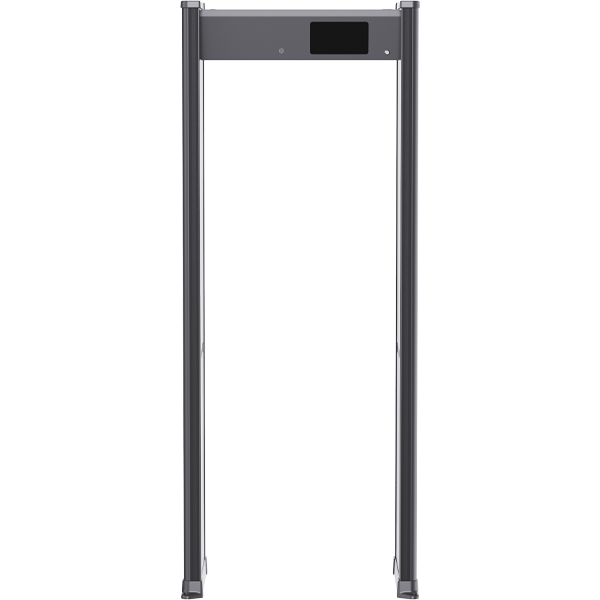

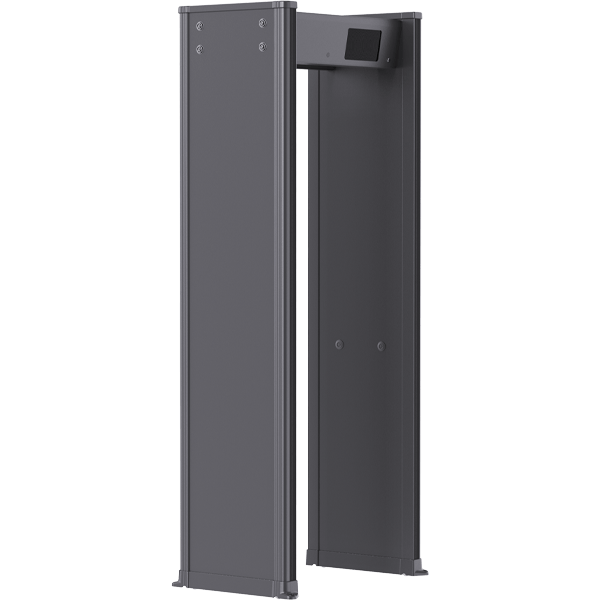

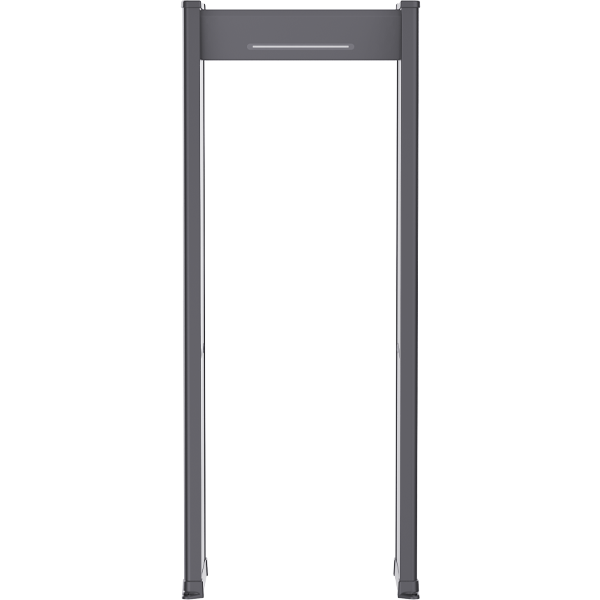

The ProScan Global walk-through metal detector 538CD is a high-end security screening portal distinguished by its modern elliptical panel design. This model represents the pinnacle of aesthetic elegance combined with elite detection technology. Featuring a high-definition interface and sophisticated multi-zone intelligence, the 538CD is specifically designed for prestigious locations such as international airports, five-star hotels, and corporate headquarters where security performance and architectural harmony are equally important.
Key technical features
- Environmental intelligence: The system is equipped with an environmental data display function. It ensures high performance, high sensitivity, and excellent stability by providing real-time feedback and adapting to the surrounding electronic environment.
- Network connectivity: Supports advanced network integration, allowing security management teams to monitor and control multiple 538CD devices from a single centralized PC.
- Precision object discrimination: Pre-set parameters allow for the fine-tuning of sensitivity based on the weight, volume, size, and location of metal objects. This intelligent technology effectively eliminates false alarms caused by personal items like keys, jewelry, and belt buckles.
- Safety and health compliance: The system strictly complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
- Sleek elliptical design: Beyond its technical capabilities, the elliptical panel structure offers a streamlined, non-intimidating aesthetic that fits perfectly into high-end interiors.
Installation condition 538CD
To ensure the 538CD operates with its signature precision, a professional walk through metal detector installation must meet the following environmental requirements:
- Surface stability: The detector must be placed on a flat, solid floor to eliminate vibrations that could lead to false alarms.
- Metal clearance: Keep fixed metal objects at least 10cm (4 inch) away. For large moving metal structures (such as elevators or revolving doors), maintain a distance of 0.5m to 2m (20 – 79 inch).
- Electrical environment: Position the unit 0.5m to 4m (20 – 157 inch) away from electronic interference sources, including power cables, industrial motors, or high-power monitors.
- Frequency coordination: If multiple units are installed side-by-side, each must be set to a different working frequency to prevent mutual signal interference.
Certifications
ProScan Global is dedicated to meeting international quality benchmarks. The 538CD is fully compliant with CE and FCC certifications, ensuring that the hardware adheres to global regulations for safety, health, and electromagnetic compatibility.
