XR3E 5030A (80KW)(Not folded)
XR3E 5030A (80KW)(Not folded) - Image 2
XR3E 5030A (80KW)(Not folded) - Image 3

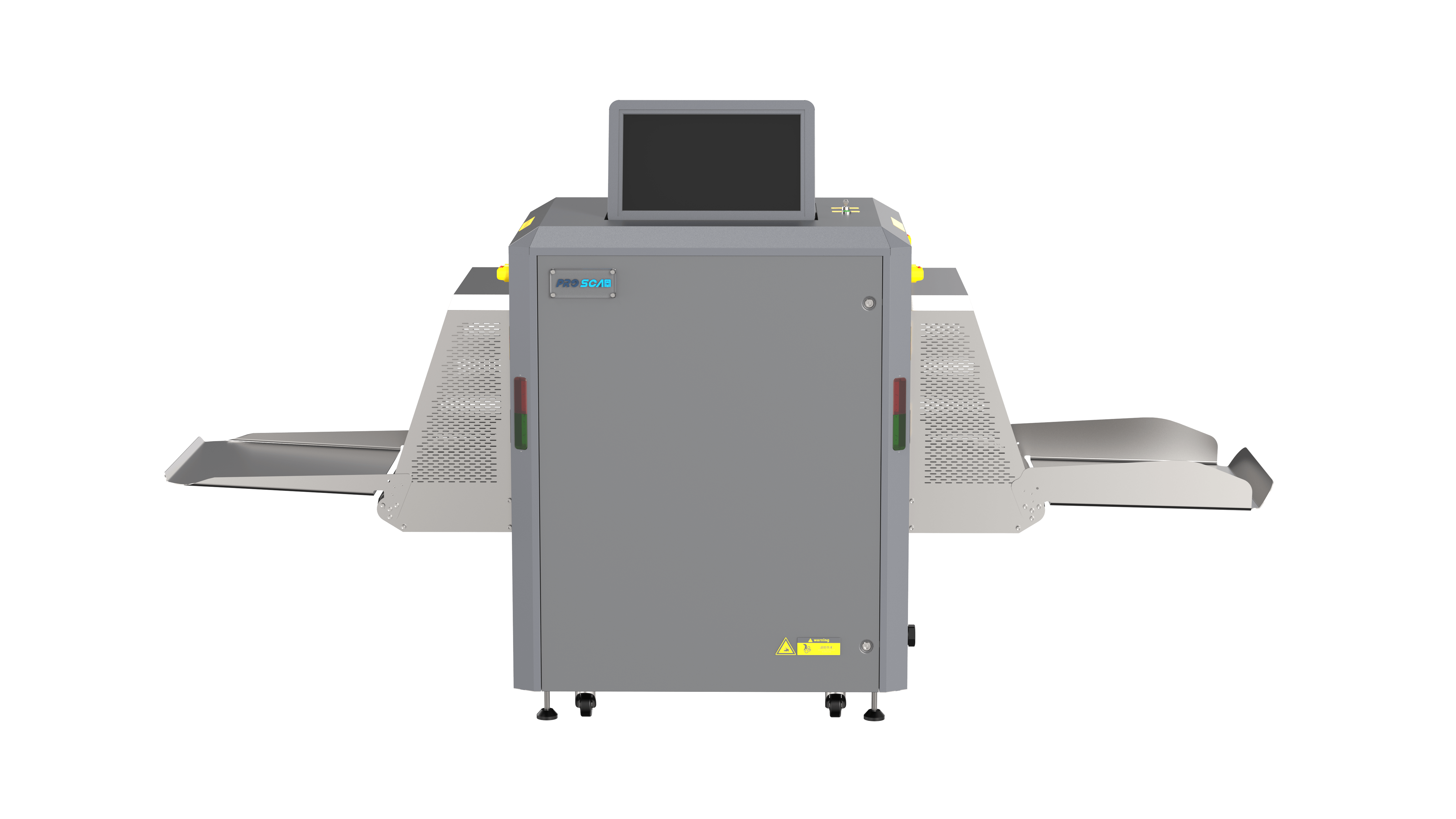

XR3E 5030A (80KW)(Not folded)

  • Channel Size: 500 mm (W) × 300 mm (H);
  • Device Size: 1475 mm (L) × 766 mm (W) × 1212 mm (H);
  • X-ray Source: 80 kV (0.5 mA – 1.25 mA);
  • Penetration: 12 mm steel plate;
  • Line Resolution: Awg38 (0.102 mm);
  • Spatial Resolution: 1.0 mm (H) × 1.0 mm (V);
  • Display: 21.5″ HD (1920 × 1080);
  • Conveyor Speed: 0.22 m/s;
  • Conveyor Belt Height: 660 mm (Belt to Ground);
  • Power Consumption: 500 W;
  • Power Supply: AC 220 V 50 Hz;
  • Noise: < 55 dB (1 m away);
  • Weight: 300 kg;
  • Operating Temperature: 5 °C – 40 °C (10 % – 90 % RH no condensation);
  • Storage Temperature: –20 °C – 40 °C (0 – 90 % RH no condensation);
  • Sensor Type: 1/2.8″ Progressive Scan CMOS;
  • Video Compression: H.265 / H.264 Mjpeg;
  • Maximum Image Size: 1920 × 1080;
  • Storage Duration: ≥ 30 days;
  • System: Windows 10;
  • System Language: English / Chinese / Russian / Turkish.

Description

The XR3E-5030A is a compact X-ray baggage scanner designed for efficient inspection of small to medium-sized luggage and parcels. With an 80 kV X-ray source and advanced digital image processing, it delivers high-resolution multi-color images and superior material discrimination. The system features modular circuit design, low radiation, quick installation, and a user-friendly interface, ensuring safe and stable operation. Ideal for airports, government offices, logistics centers, and public venues requiring fast and reliable security screening.
