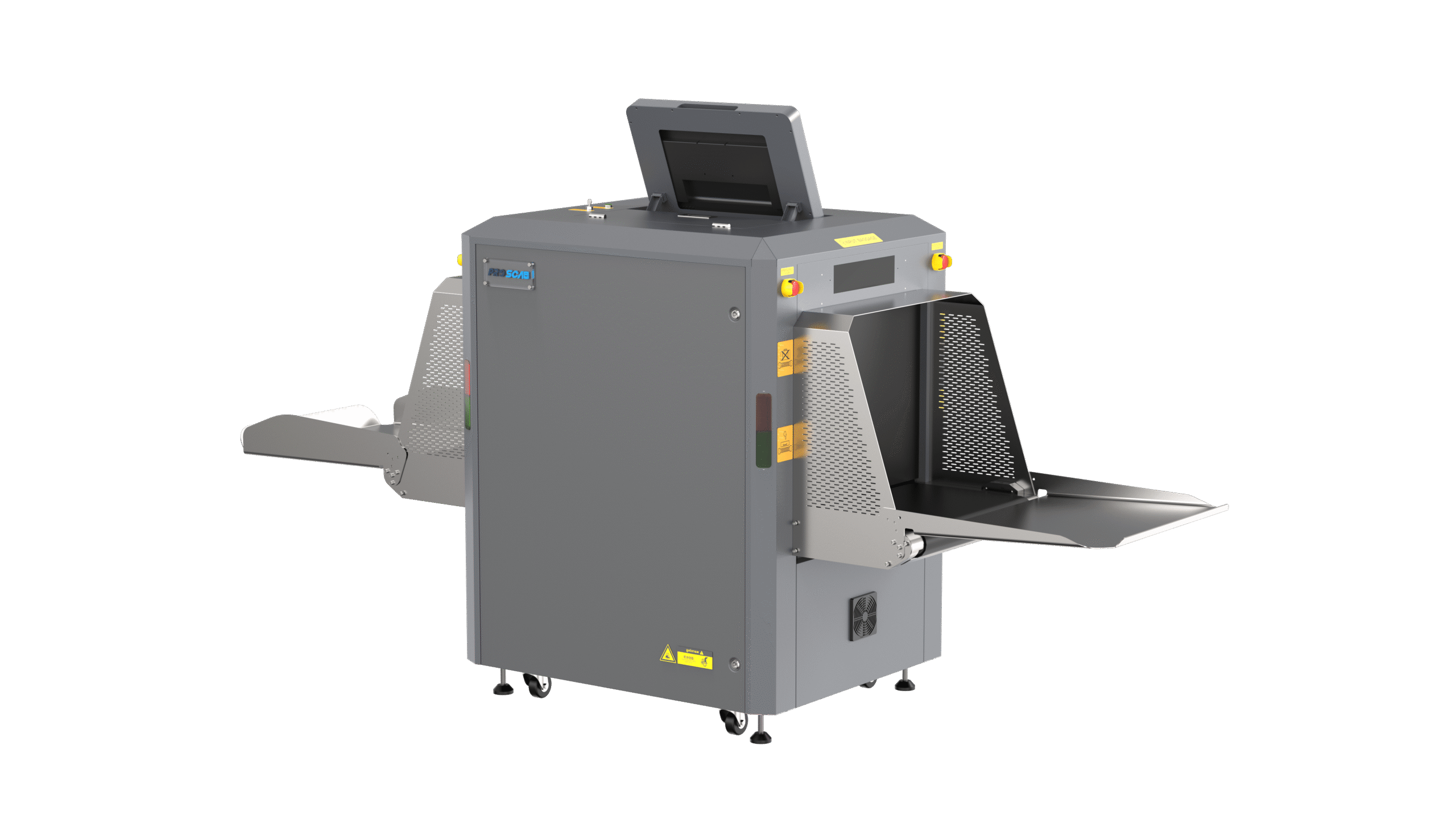

XR3E 5030C (140KW)(Not folded)

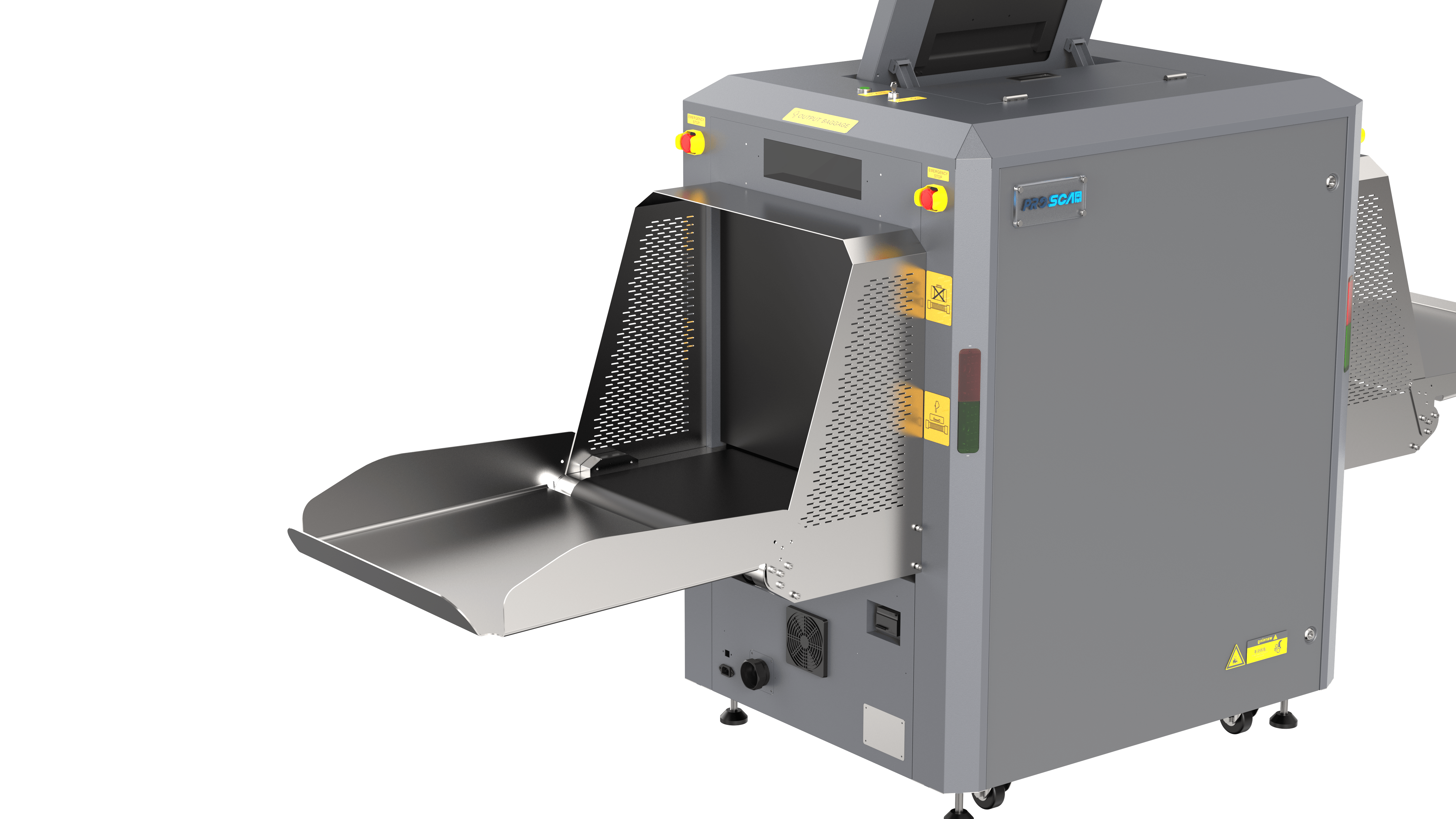

XR3E 5030C (140KW)(Not folded) - Image 2
XR3E 5030C (140KW)(Not folded) - Image 3

XR3E 5030C (140KW)(Not folded)

  • Channel Size: 500 mm (W) × 300 mm (H);
  • Device Size: 1475 mm (L) × 766 mm (W) × 1212 mm (H);
  • X-ray Source: 140 kV (0.5 mA – 1.25 mA);
  • Penetration: 40 mm steel plate;
  • Line Resolution: Awg40 (0.078 mm);
  • Spatial Resolution: 1.0 mm (H) × 1.0 mm (V);
  • Display: 21.5″ HD (1920 × 1080);
  • Conveyor Speed: 0.22 m/s;
  • Conveyor Belt Height: 660 mm (Belt to Ground);
  • Power Consumption: 800 W;
  • Power Supply: AC 220 V 50 Hz;
  • Noise: < 55 dB (1 m away);
  • Weight: 300 kg;
  • Operating Temperature: 5 °C – 40 °C (10 % – 90 % RH no condensation);
  • Storage Temperature: –20 °C – 40 °C (0 – 90 % RH no condensation);
  • Sensor Type: 1/2.8″ Progressive Scan CMOS;
  • Video Compression: H.265 / H.264 Mjpeg;
  • Maximum Image Size: 1920 × 1080;
  • Storage Duration: ≥ 30 days;
  • System: Windows 10;
  • System Language: English / Chinese / Russian / Turkish.

Description

The XR3E-5030C is a high-performance X-ray baggage scanner designed for accurate detection of dense and multi-layered items. Powered by a 140kV X-ray source with 40mm steel penetration, it delivers clear, multi-color imaging with low radiation and superior energy efficiency. Its modular digital circuit design ensures stability, long service life, and easy maintenance. The system supports real-time image processing and AI-ready functions for enhanced object recognition, making it ideal for airports, logistics hubs, government institutions, and public checkpoints.
