XR3E 6550A (80KW)

  • Channel Size: 659 mm (W) × 540 mm (H);
  • Device Size: 1893 mm (L) × 916 mm (W) × 1411 mm (H);
  • X-ray Source: 80 kV (0.5 mA – 1.25 mA);
  • Penetration: 12 mm steel plate;
  • Line Resolution: Awg38 (0.102 mm);
  • Spatial Resolution: 1.0 mm (H) × 1.0 mm (V);
  • Display: 21.5″ HD (1920 × 1080);
  • Conveyor Speed: 0.22 m/s;
  • Conveyor Belt Height: 700 mm (Belt to Ground);
  • Power Consumption: 500 W;
  • Power Supply: AC 220 V 50 Hz;
  • Noise: < 55 dB (1 m away);
  • Weight: 450 kg;
  • Operating Temperature: 5 °C – 40 °C (10 % – 90 % RH, no condensation);
  • Storage Temperature: –20 °C – 40 °C (0 – 90 % RH, no condensation);
  • Sensor Type: 1/2.8″ Progressive Scan CMOS;
  • Video Compression: H.265 / H.264 Mjpeg;
  • Maximum Image Size: 1920 × 1080;
  • Storage Duration: ≥ 30 days;
  • System: Windows 10;
  • System Language: English / Chinese / Russian / Turkish.

Description

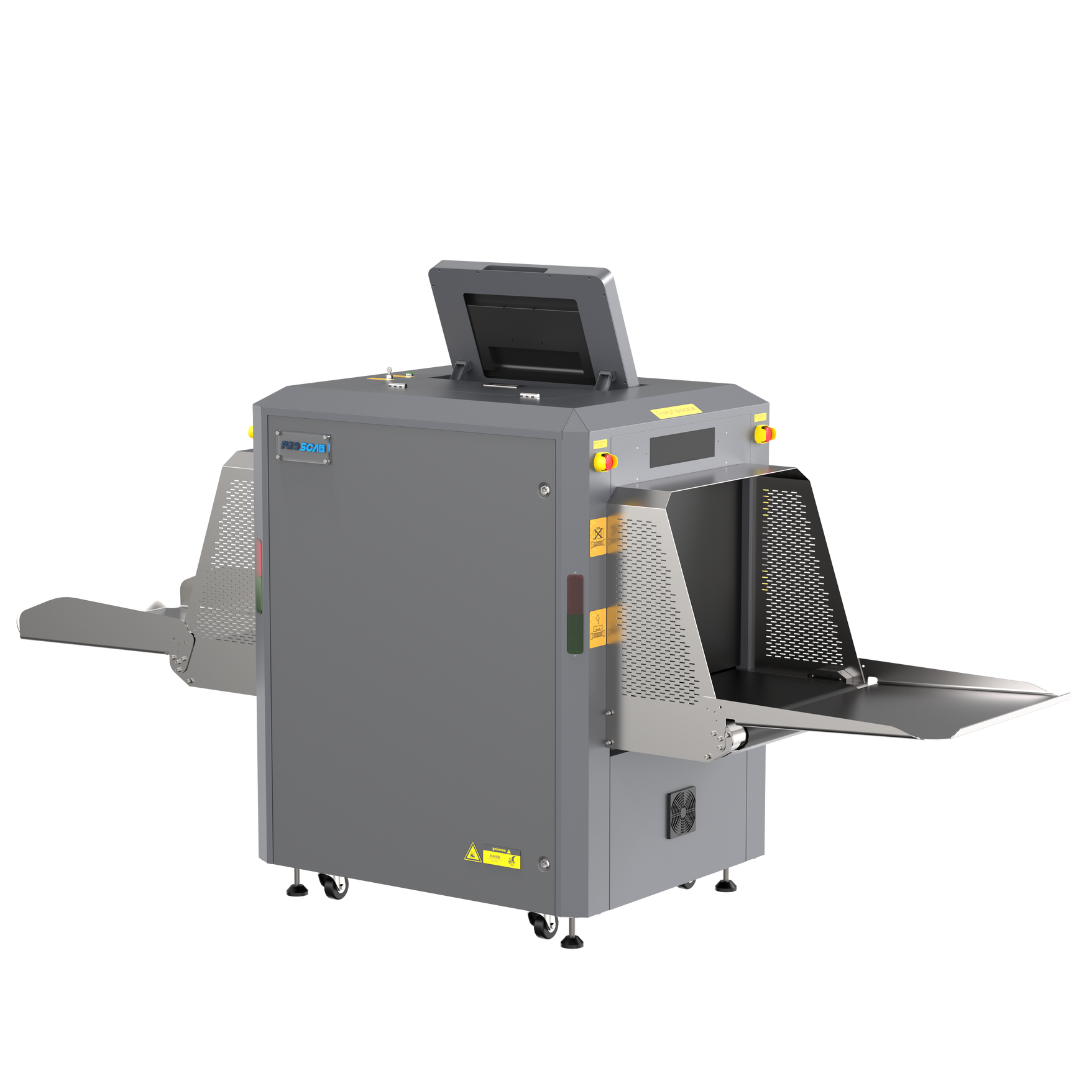

The XR3E-6550A is an advanced X-ray baggage scanner designed for high-traffic security checkpoints, combining efficiency, clarity, and durability. Using an 80kV X-ray source, it provides clear multi-color imaging and 12mm steel penetration capability for accurate detection of organic, inorganic, and mixed materials.

The system features modular circuit design, bi-directional transmission, and energy-efficient performance with low radiation levels. Ideal for airports, transport terminals, logistics centers, and government buildings, it ensures reliable, real-time inspection with quick installation and long-term operational stability.
