Walk-Through Metal Detector
Security Gate
ProScan Walk-Through Metal Detectors (WTMD) are designed to provide reliable and efficient security screening for environments with high pedestrian traffic such as schools, factories, and public venues. The system combines stable detection performance with flexible configuration, allowing organizations to implement effective screening solutions that fit their operational needs.
Flexible OEM/ODM customization for both technical and product appearance.
Accurately identifies metal objects with adjustable sensitivity for different scenarios.
Stable operation even in complex electromagnetic environments and challenging conditions.
Efficient screening for locations with heavy and continuous foot traffic.
Key Advantages of ProScan Security Gate
270 series
Overall Dimensions: 2165 × 828 × 349 mm
Passage Dimensions: 1980 × 720 × 349 mm
Operating Voltage: AC100V~240V, 50 / 60Hz
Power Consumption:12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned”
285 series
Overall Dimensions: 2308x1110x500mm
Passage Dimensions: 2050x720x500mm
Operating Voltage: AC100V~240V, 50 / 60Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned”

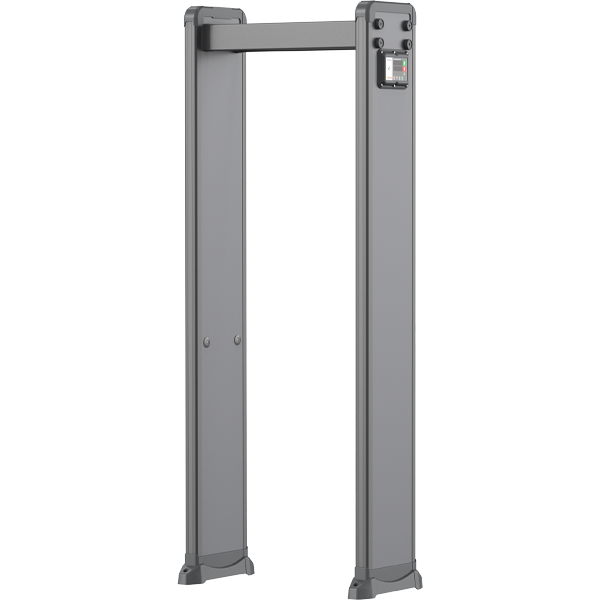

330 series
Overall Dimensions: 2191 × 875 × 446 mm
Passage Dimensions: 2007 × 720 × 446 mm
Operating Voltage: AC100V~240V, 50/60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

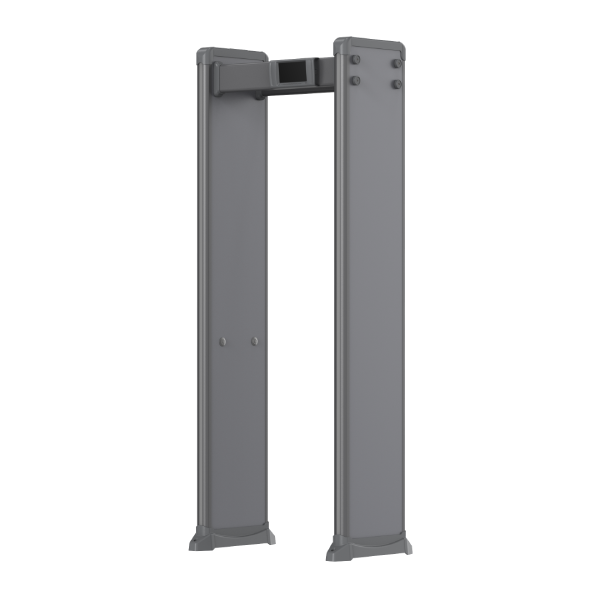

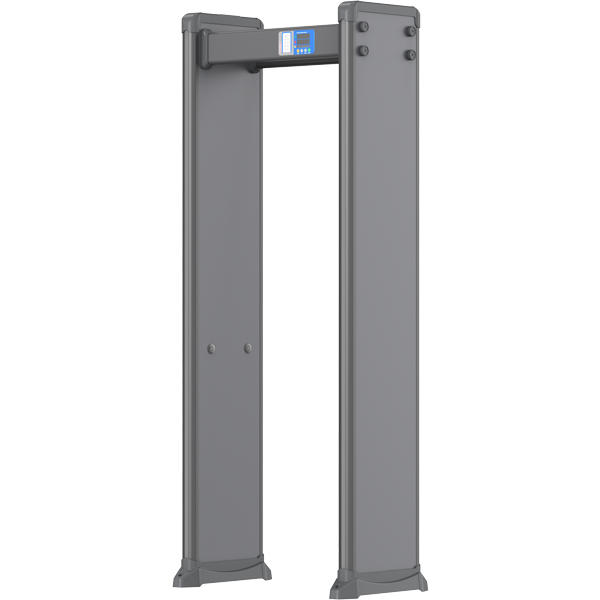

440 series
Overall Dimensions: 2214 × 898 × 536 mm
Passage Dimensions: 2011 × 720 × 536 mm
Operating Voltage: AC 100V ~ 240V, 50 / 60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

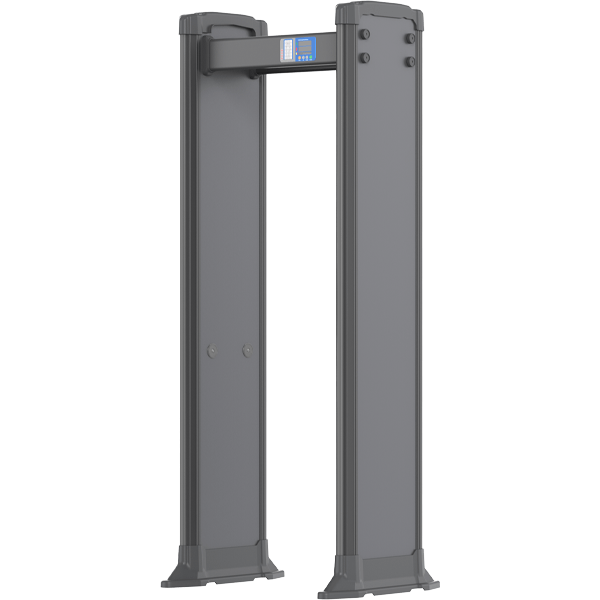

500 series
Overall Dimensions: 2249 × 933 × 715 mm
Passage Dimensions: 2010 × 720 × 715 mm
Operating Voltage: AC 100V ~ 240V, 50 / 60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

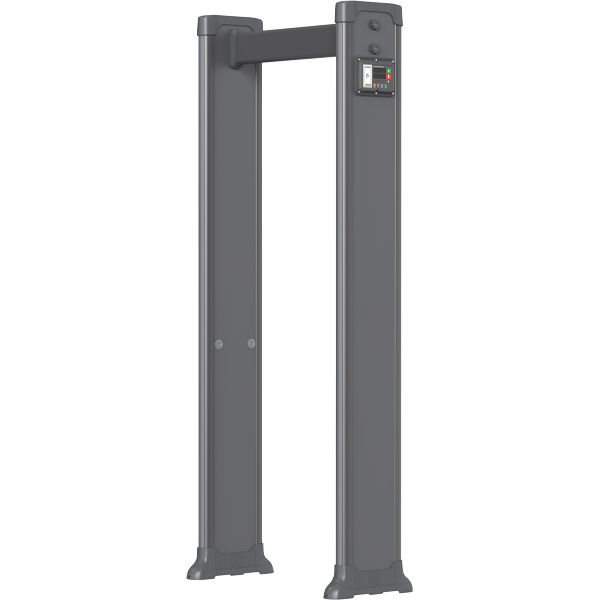

308 series
Overall Dimensions: 2204 × 870 × 419 mm
Passage Dimensions: 2010 × 720 × 419 mm
Input Voltage: AC 100V ~ 240V, 50 / 60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

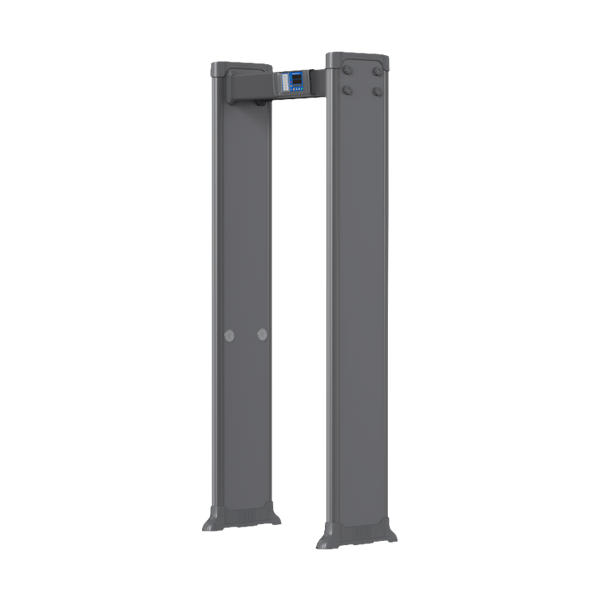

368 series
Overall Dimensions: 2204 × 870 × 480 mm
Passage Dimensions: 2010 × 720 × 480 mm
Input Voltage: AC 100V ~ 240V, 50 /60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

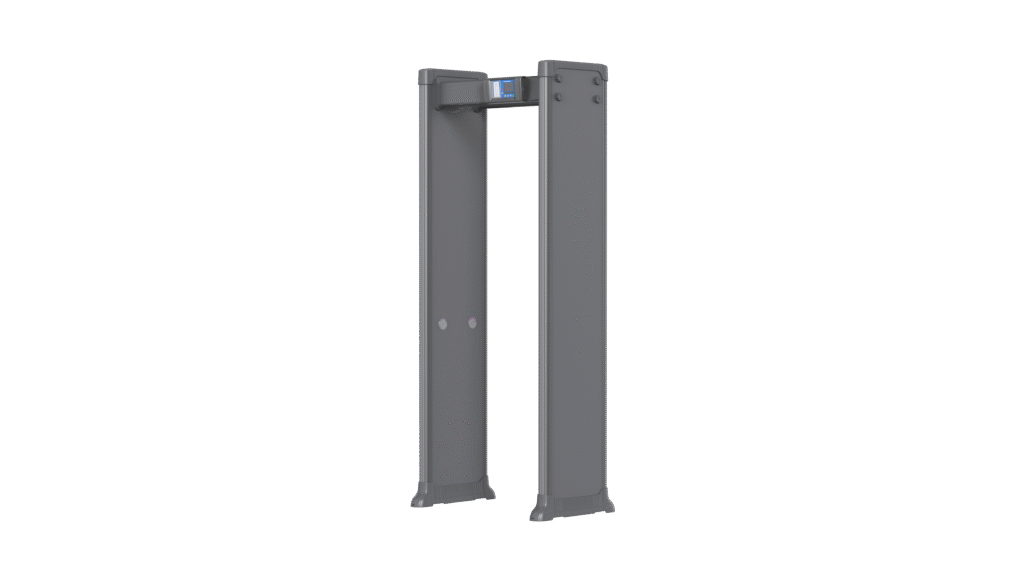

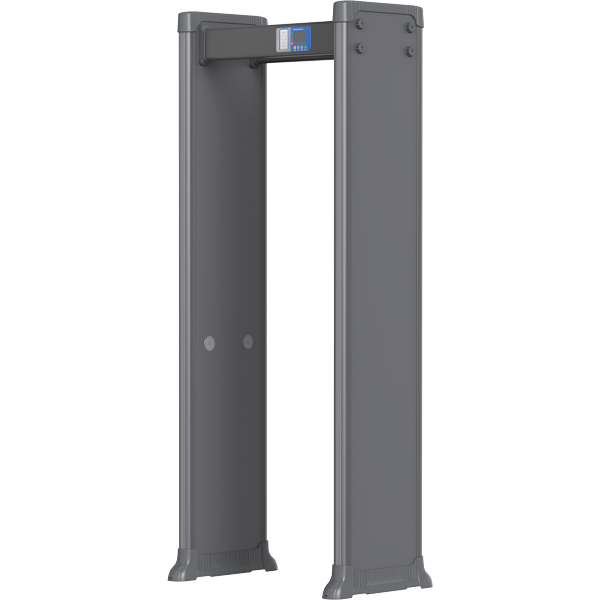

468 series
Overall Dimensions: 2204 × 870 × 580 mm
Passage Dimensions: 2010 × 720 × 580 mm
Input Voltage: AC 100V ~ 240V, 50 / 60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

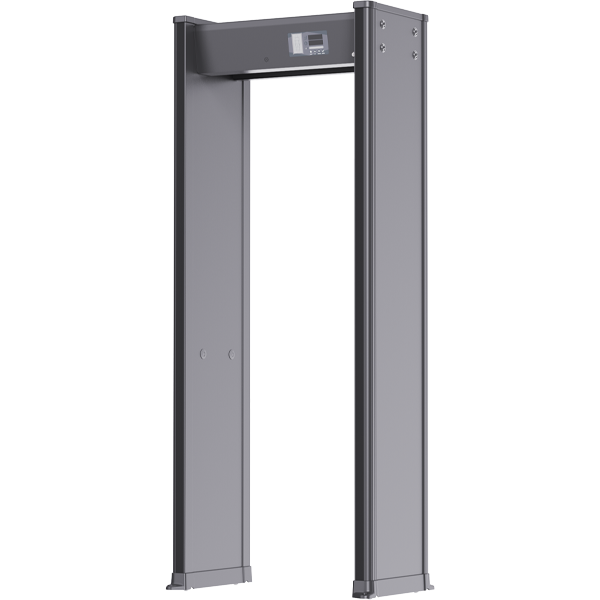

488 series
Overall Dimensions: 2264 × 903 × 558 mm
Passage Dimensions: 2030 × 760 × 558 mm
Input Voltage: AC 100V ~ 240V, 50 / 60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

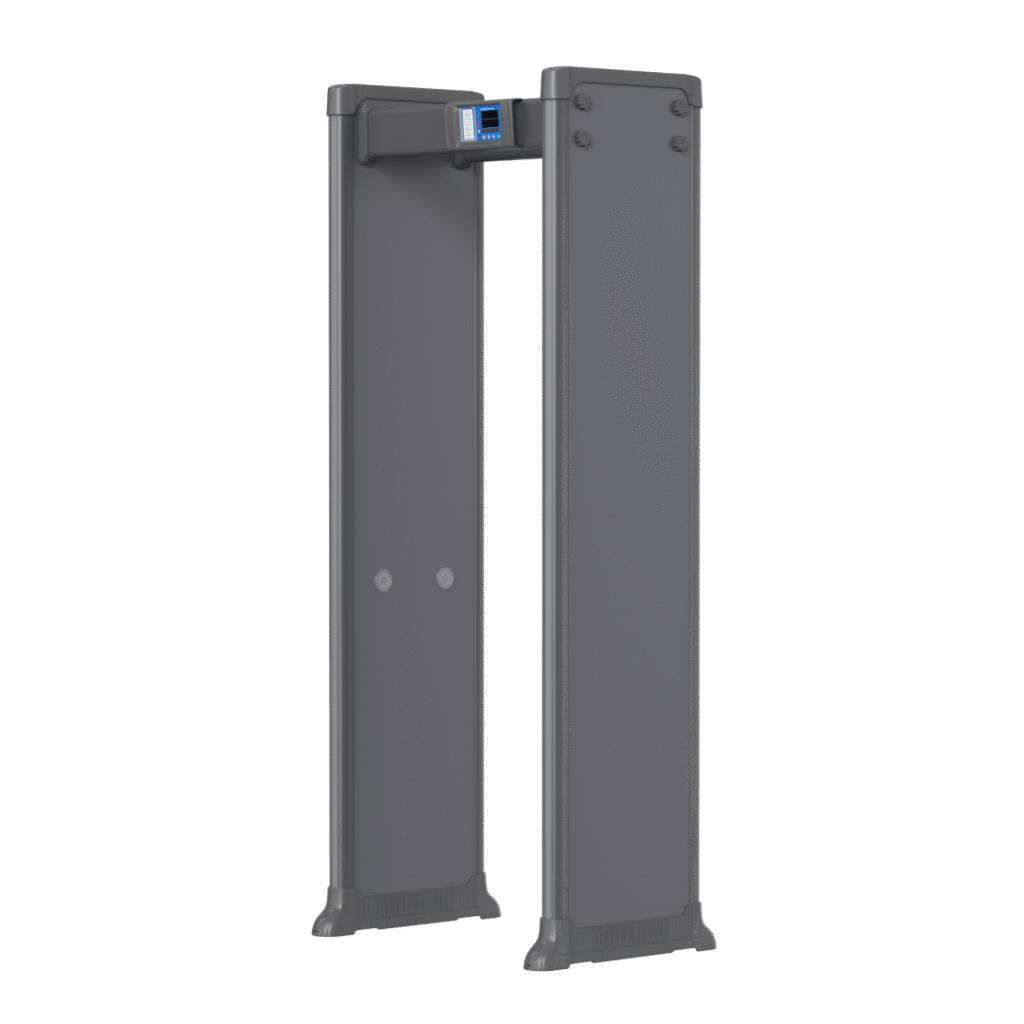

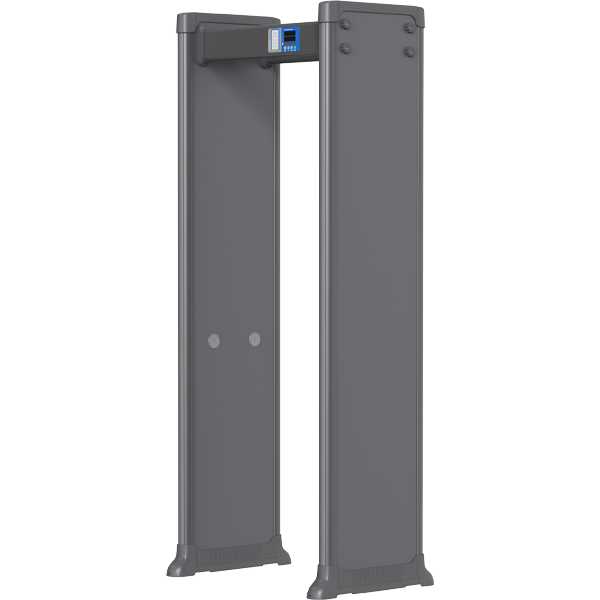

518 series
Overall Dimensions: 2204 × 870 × 630 mm
Passage Dimensions: 2010 × 720 × 630 mm
Input Voltage: AC 100V ~ 240V, 50 / 60 Hz
Power Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

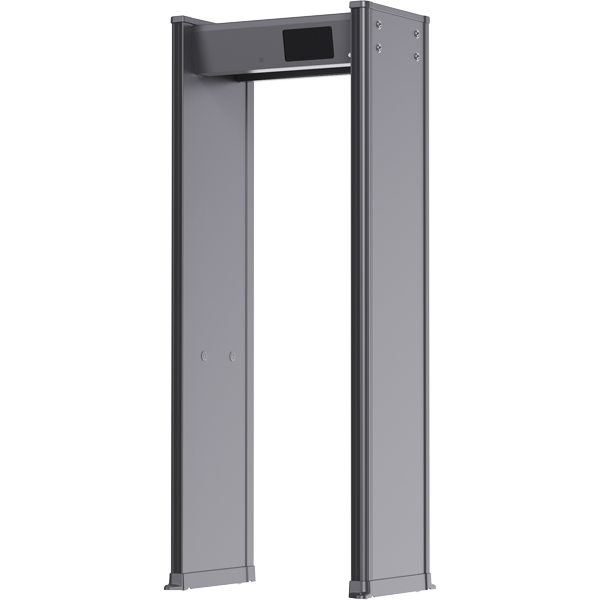

538 series
External Dimensions: 2264×896×558mm
Passage Dimensions: 2030×760×558mm
Packaging Dimensions: L2350×W790×H230mm
Net Weight: 69kg
Gross Weight: 78kg
Volume: 0.9m³
Input: AC100V–240V / 50Hz–60Hz

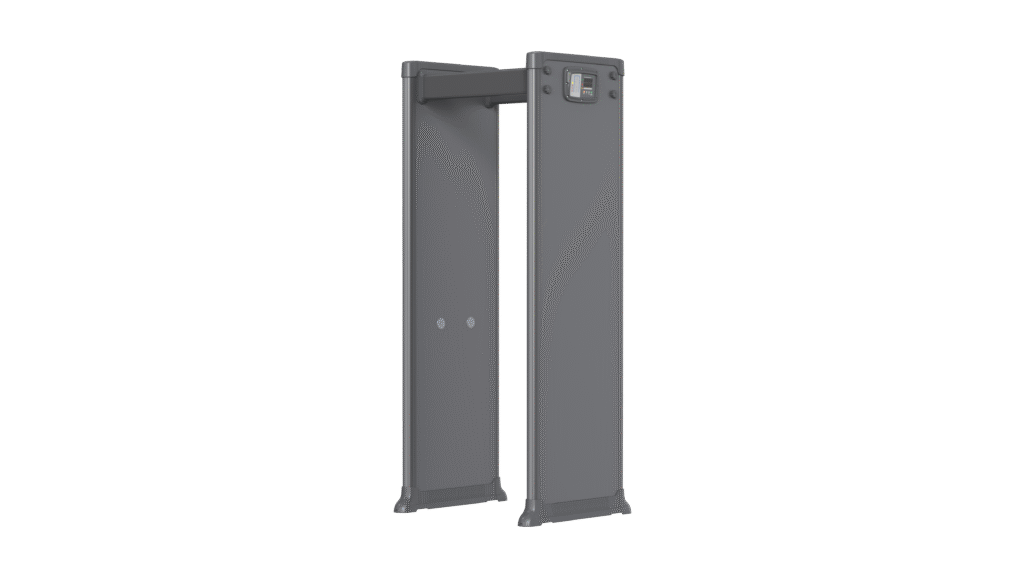

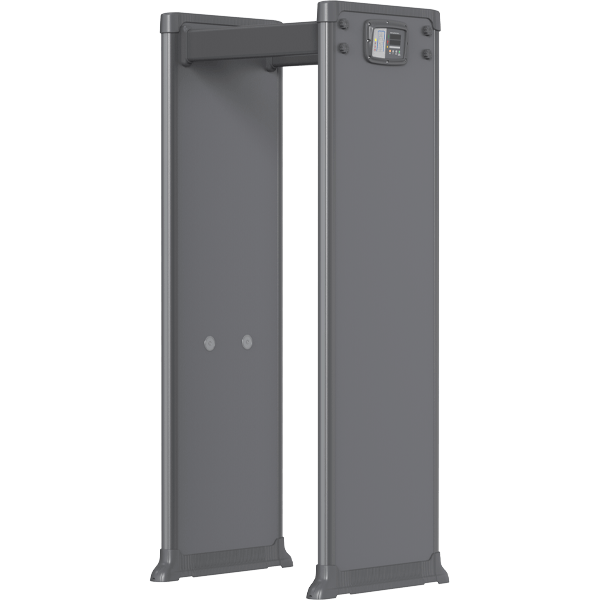

668 series
Overall Dimensions: 2204 × 870 × 780 mm
Passage Dimensions: 2013 × 720 × 780 mm
Operating Voltage: AC 100V ~ 240V, 50 / 60 HzPower Consumption: 12 W
Operating Temperature: -20°C ~ +65°C
Installation Environment: Flat area with a minimum metal-free zone of 100 cm (width) × 200 cm (length), horizontally aligned

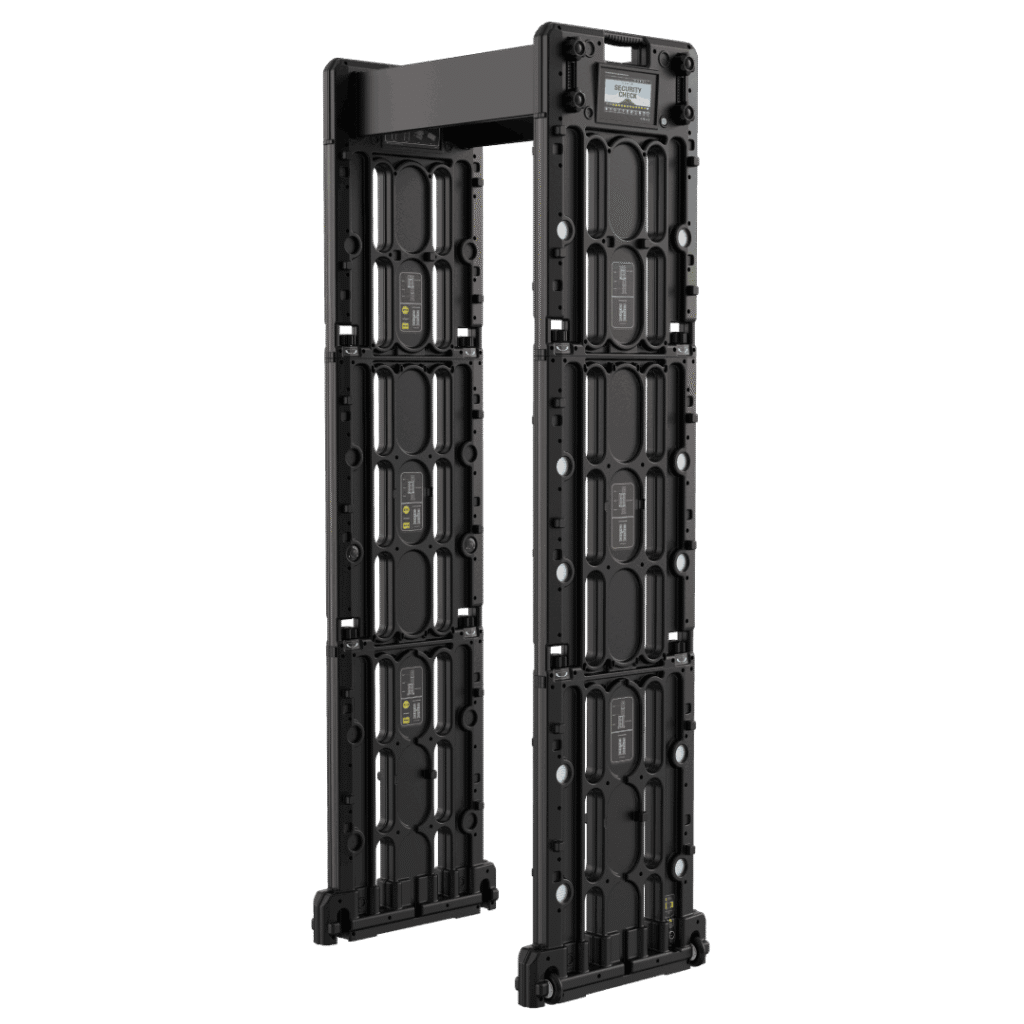

PORTABLE WTMD
Detection Technology: Pulse electromagnetic field with 8 overlapping zones
Detection Sensitivity: Adjustable for different threat levels and materials
Power Supply: AC 100V–240V, 50/60 Hz
Dimensions: 2248 × 884 × 606 mm (external); passage 2050 × 710 × 505 mm
Operating Temperature: -20°C to +65°C
Installation: Quick assembly; suitable for flat, vibration-free surfaces
Product Series

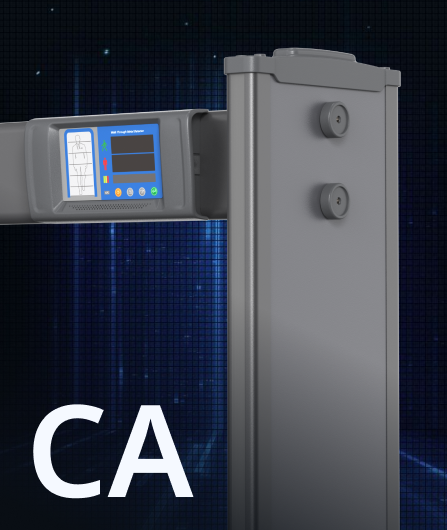

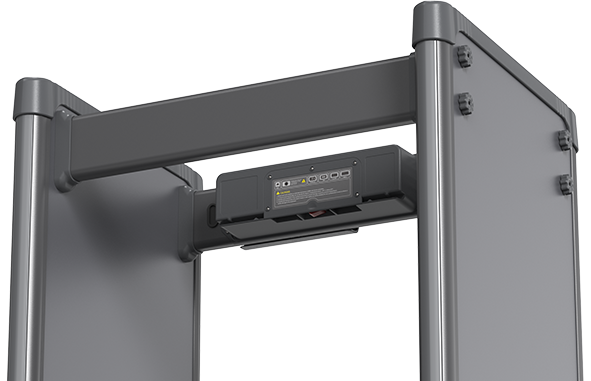

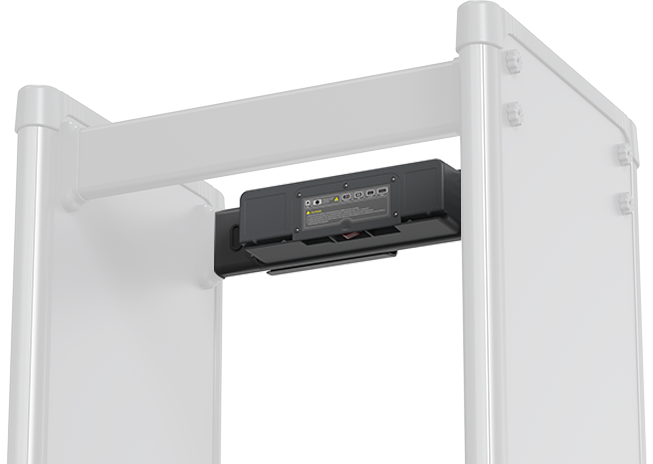

CONTROL BOX

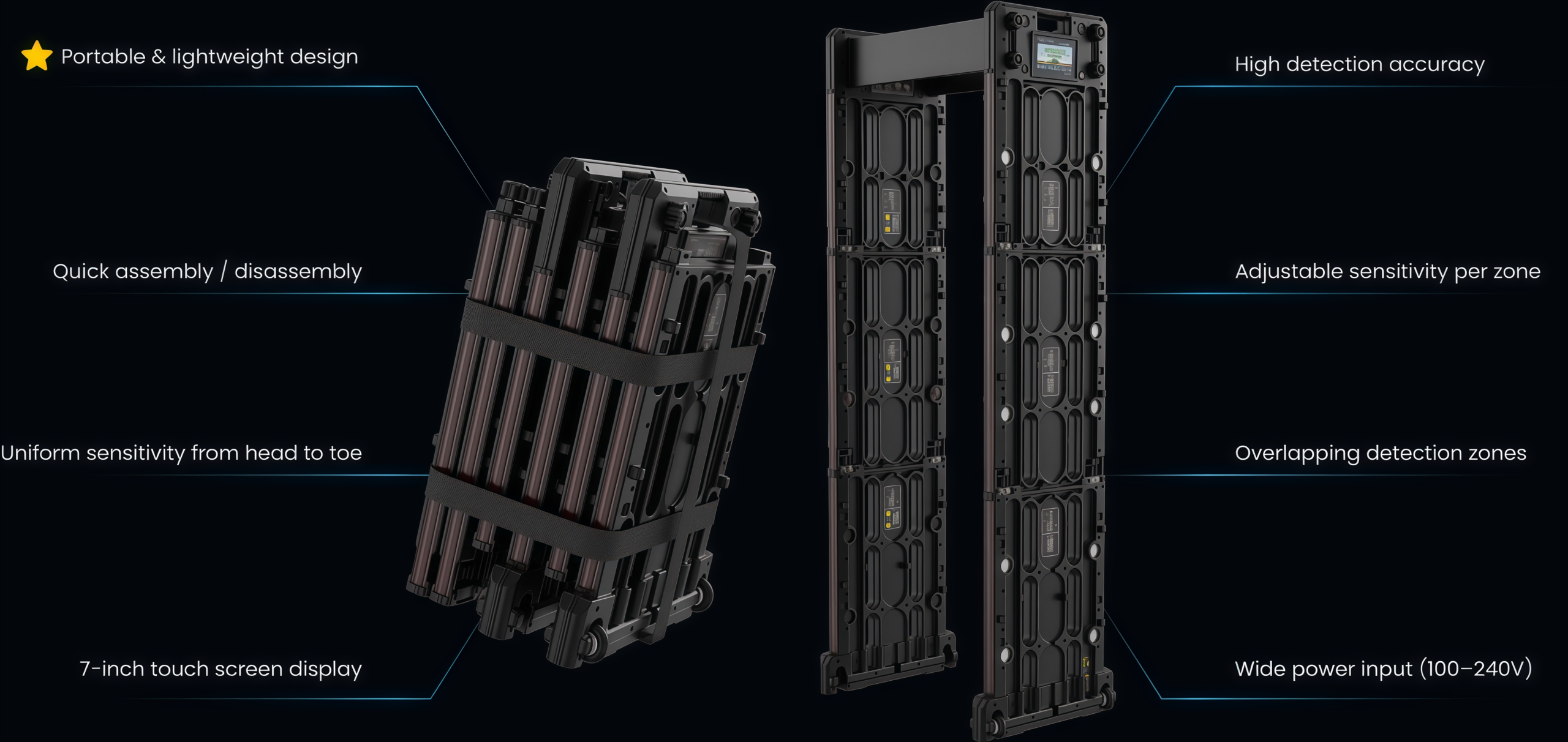

Most Popular Portable Walk-Through Metal Detector
Our most popular and best-selling Portable Walk-Through Metal Detector is designed for rapid deployment, easy mobility, and reliable security screening. It is ideal for temporary checkpoints, large events, transportation hubs, and flexible security operations where speed and accuracy are essential.
