Description
| Model name | 285PA |

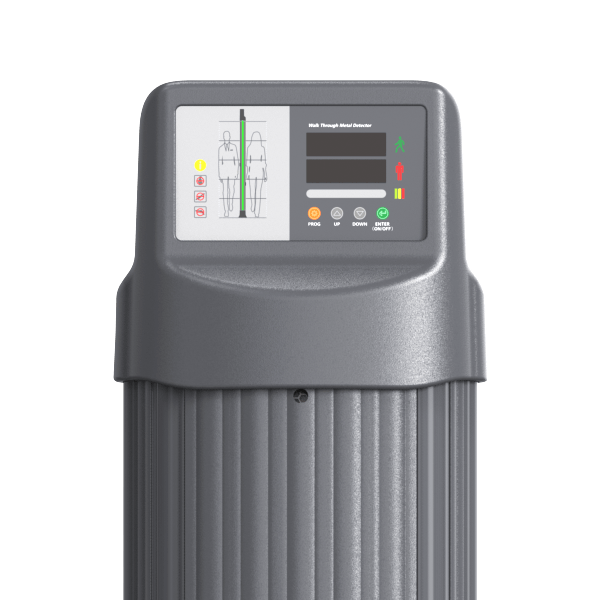

| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Packaging dimensions(L*W*H) | 2200*590*240(mm) |

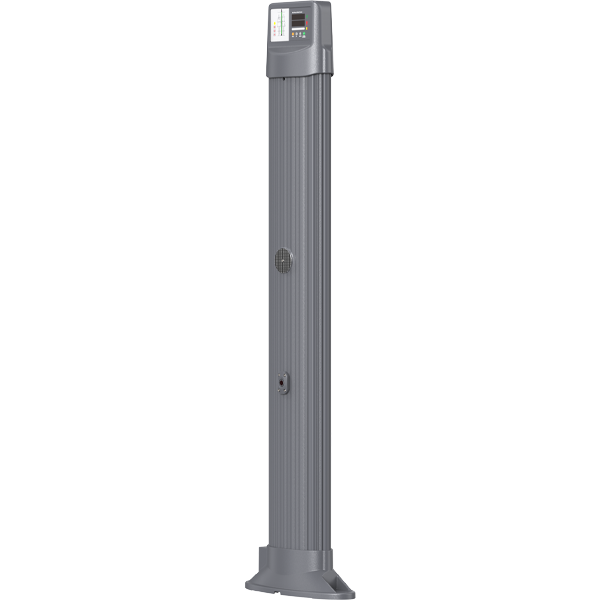

The ProScan Global walk through metal detector 285PA is a high-performance security solution featuring a specialized side panel digital control box. This model is engineered to provide precise, multi-zone intelligent detection while maintaining an elegant and practical design. With its high-definition display and user-friendly interface, the 285PA ensures maximum accuracy – from precise counting to pinpoint detection – making it an ideal choice for a wide range of security screening applications.
Key technical features
- Environmental data monitoring: The system is equipped with an environmental data display function, offering high performance, high sensitivity, and excellent stability by constantly analyzing surrounding conditions.
- Network connectivity: Supports advanced networked operation, enabling multiple devices to be integrated and managed seamlessly from a single PC.
- Intelligent false alarm reduction: Pre-set detection parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by personal items such as keys, jewelry, and belt buckles.
- Safety guaranteed: The system complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified safe for pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
- Self-diagnostic system: Features an automated self-test and scan program to ensure the equipment is always operating at its optimal state.
Installation condition 285PA
To ensure the 285PA operates at peak accuracy, a professional walk through metal detector installation must adhere to the following environmental guidelines:
- Stable foundation: The unit must be installed on a flat, solid floor to prevent vibrations that could trigger false alarms.
- Metal clearance: Maintain a distance of at least 10cm (4 inch) from fixed metal objects. Large moving metal objects (like elevators or sliding doors) should maintain a distance of 0.5m to 2m (20 – 79 inch).
- Interference mitigation: The system should be positioned 0.5m to 4m (20 – 157 inch) away from sources of radiated electronic interference, such as power lines, motors, or monitors.
- Multi-device setup: When operating multiple units side-by-side, different working frequencies must be selected to prevent mutual signal interference.
Certifications
ProScan Global is dedicated to international quality and safety benchmarks. The 285PA is fully compliant with CE and FCC certifications, ensuring that our hardware meets rigorous global standards for electromagnetic compatibility and operational safety.
After-sales service system
We offer a comprehensive support network designed to ensure your long-term success:
- Dedicated customer care: Our post-sale support includes rapid technical assistance and maintenance care to ensure your equipment remains in top condition.
- Strategic market insights: As a unique value-added service, ProScan Global provides clients with target market research, helping you understand local security trends and optimize your screening protocols.
Shipping
Flexible global logistics: We support multiple shipping modes to suit your timeline and budget, including: Sea, Air, and Land freight.
