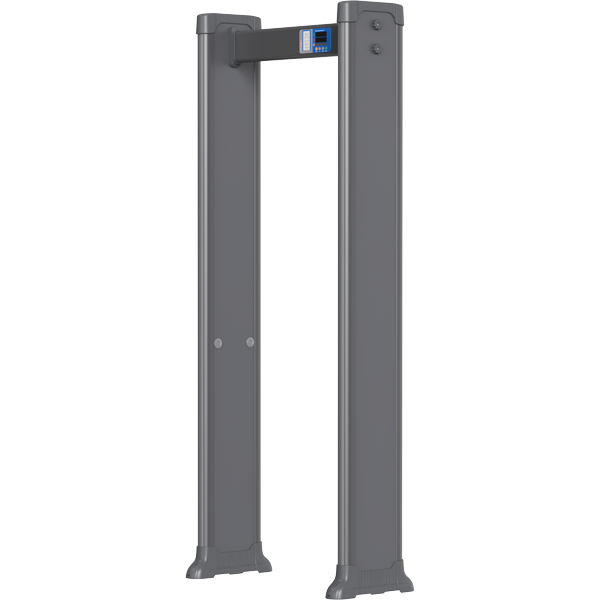

walk through metal detector 308wa

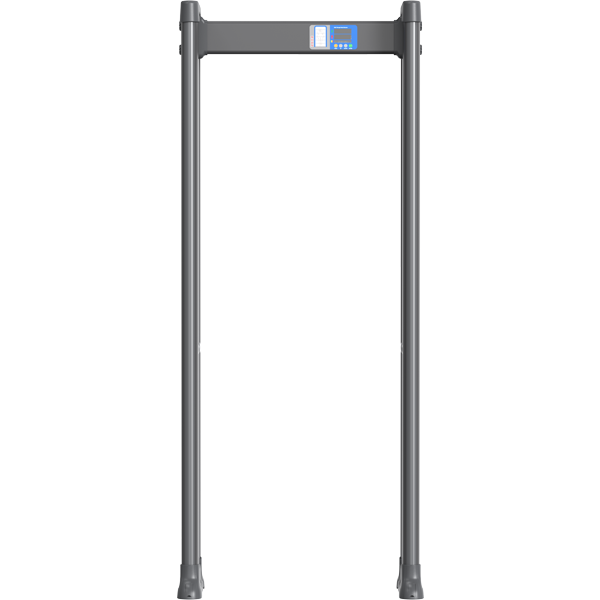

front of walk through metal detector 308wa

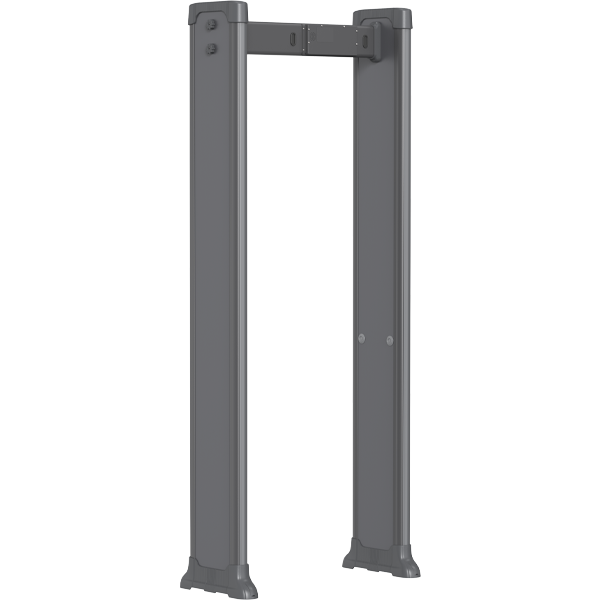

right of walk through metal detector 308wa

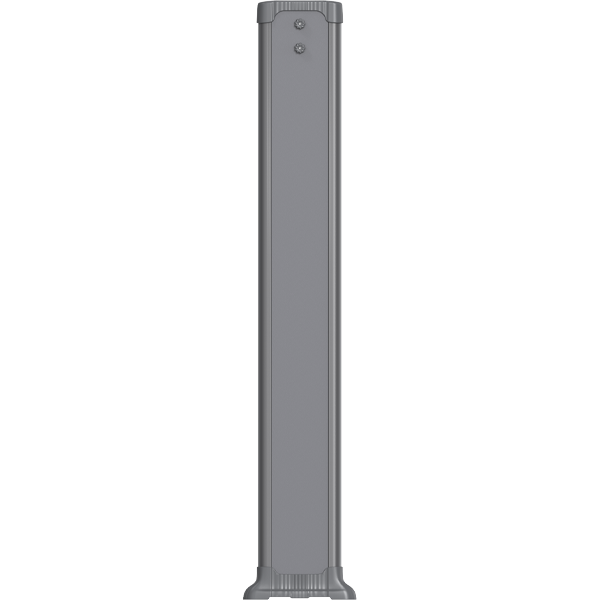

back of walk through metal detector 308wa

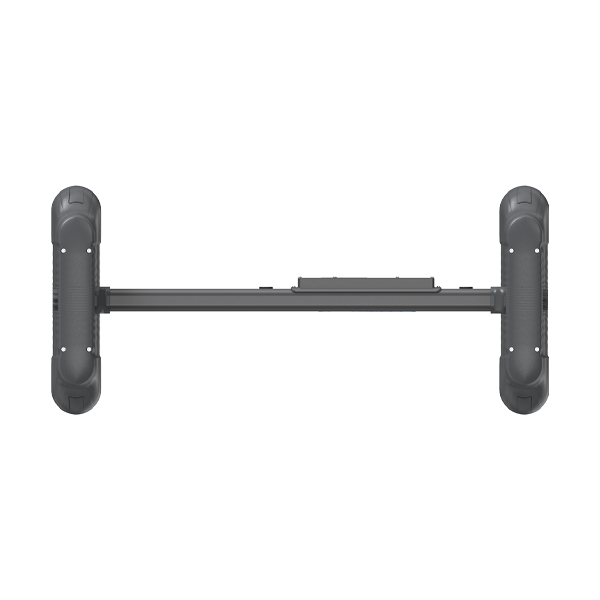

top of walk through metal detector 308wa

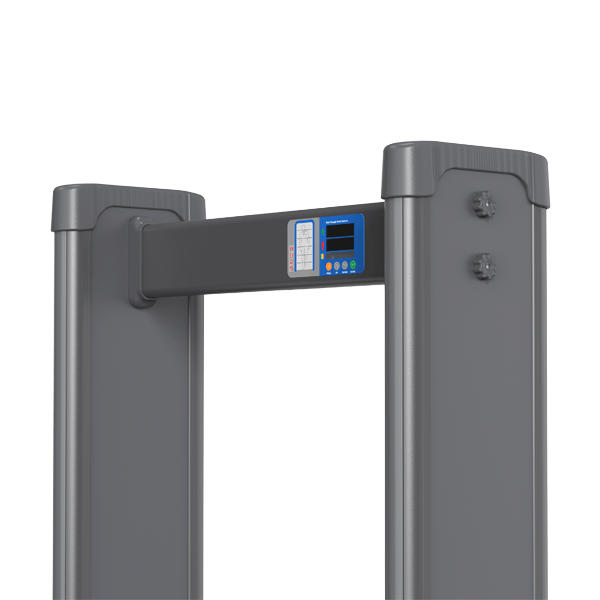

screen of walk through metal detector 308wa

Waterproof Cross-beam Digital Control Box 308WA

Model: 308WA

Zone: 1 to 93 zone

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Technical: Self-diagnoses, zone sensitivity adjustment, real-time data view.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 2204*870*419mm.
  • Passage size (H*W*D): 2010*720*419mm (The width of passage can be custom from 700 – 1500mm).

Weight: Net weight 31kg, Gross weight 37kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, zone, dimension, coils, lights, battery management system.

The walk-through metal detector waterproof cross-beam digital control box 308WA is a rugged security solution designed for superior stability and reliable performance in demanding environments. This model is built with specialized 308mm wide panels. The system features a robust top-mounted crossbeam architecture that houses the digital control box, which is equipped with a high-visibility LED display and tactile physical buttons for dependable manual adjustments. Most importantly, the entire unit is reinforced with advanced waterproof technology, protecting the sensitive electronic components from moisture and harsh weather conditions. This combination of a stable panel base and weather-resistant construction makes the 308WA an ideal choice for all-weather, high-security outdoor installations.

Description

Model name 308WA
Display Digital control box 7 inch
Detection mode Automatic/ Infrared detection mode (4 options)
Maximum detection distance 20 – 2000mm (vertical)
Throughput 60 detection per min on the average.
Sensitivity level 0-255
Detection zone Adjustable (Up to 93 zone)
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current 0.8A
Operating power 12W
Operating time 24/7 operation capability
Detection sound alert 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator 2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency 0-99
Operating temperature -20 to 65 C
Waterproof IP65
Packaging dimensions(L*W*H) 2290*565*190mm.

The ProScan Global walk-through metal detector 308WA is a high-performance security solution featuring a specialized waterproof cross-beam digital control box. Designed for high-traffic environments that require both precision and resilience, this model redefines the standards of multi-zone intelligent detection. With its high-definition interface and rugged structural design, the 308WA ensures maximum accuracy-from precise counting to pinpoint detection-delivering reliable performance even in challenging environmental conditions.

Key technical features

  • Environmental data monitoring: The system is equipped with an environmental data display function, allowing it to provide high performance, high sensitivity, and excellent stability by constantly analyzing surrounding conditions.
  • Network management: It supports seamless network connectivity, enabling security personnel to manage and monitor multiple 308WA units from a single PC.
  • Intelligent discrimination: Pre-set parameters allow adjustment for the weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by personal items like keys, jewelry, and belt buckles.
  • Certified safety: The system complies with EMC electromagnetic radiation standards and uses low magnetic field technology, making it harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
  • Weatherproof protection: Specifically engineered with a waterproof control box, this unit is ideal for locations exposed to high humidity or varying weather conditions.

Installation condition 308WA

To ensure the 308WA operates at its highest potential, a professional walk through metal detector installation must follow these environmental requirements:

  • Structural stability: The installation surface must be flat and solid to eliminate vibrations that could trigger false alarms.
  • Metal clearance: Maintain a distance of at least 10cm (4 inch) from fixed metal objects. For large moving metal objects like elevators, a distance of 0.5m to 2m (20 – 79 inch) is recommended.
  • Interference mitigation: Position the unit 0.5m to 4m (20 – 157 inch) away from electronic interference sources, such as power lines, motors, or monitors.
  • Frequency settings: When deploying multiple units side-by-side, each device must be set to a different working frequency to prevent mutual signal interference.

Certifications

ProScan Global is dedicated to meeting international quality and safety benchmarks. The 308WA is fully compliant with CE and FCC certifications, ensuring that our hardware adheres to the highest global standards for electronic safety and electromagnetic compatibility.

After-sales service system

We believe in providing more than just technical support; we provide a partnership for your success:

  • Comprehensive care: Our service system includes dedicated post-sale technical assistance and customer care to ensure your successful business.
  • Target market research: As a unique value-add, ProScan Global offers customers target market research insights, helping you understand regional security trends and optimize your screening protocols.

Shipping

To ensure global reach and timely delivery, ProScan Global offers versatile logistics options:

  • Flexible shipping methods: We support various transport modes, including sea freight, air freight, and land transport, to accommodate your specific timeline and budget requirements.
  • Global distribution: Our logistics network is optimized to deliver high-precision security equipment safely to any destination worldwide.

Preview video of walk-through metal detector 308WA
