Description
| Model name | 330WA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Waterproof | IP65 |
| Operating temperature | -20 to 65 C |

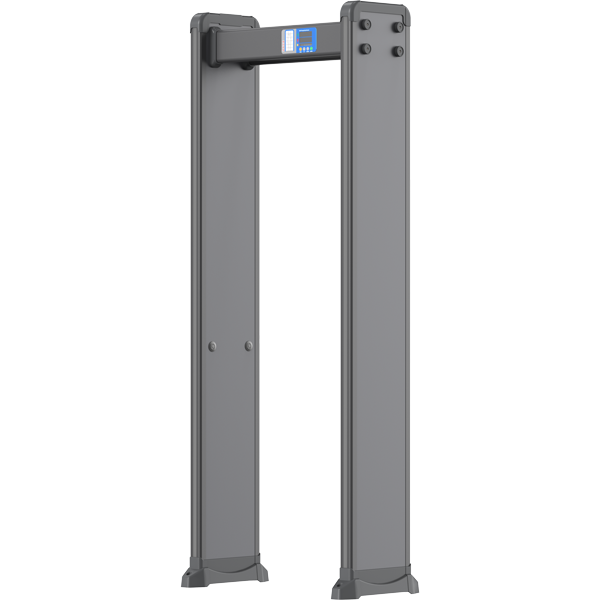

The walk through metal detector 330WA is a rugged, high-performance security solution specifically designed for environments that demand both precision and durability. Featuring a specialized waterproof cross-beam digital control box, this model redefines the standards of multi-zone intelligent detection. With its high-visibility digital display paired with a tactile button control interface and user-friendly interface, the 330WA ensures maximum accuracy.
Key technical features
- Environmental data monitoring: Equipped with a real-time environmental data display function, the 330WA maintains high performance, high sensitivity, and excellent stability by constantly analyzing its surroundings.
- Network connectivity: Supports seamless networked operation, enabling security teams to manage and monitor multiple devices from a single PC.
- Intelligent filtering: Pre-set parameters allow for the adjustment of weight, volume, size, and location of metal objects. This effectively eliminates false alarms caused by harmless personal items like keys, jewelry, and belt buckles.

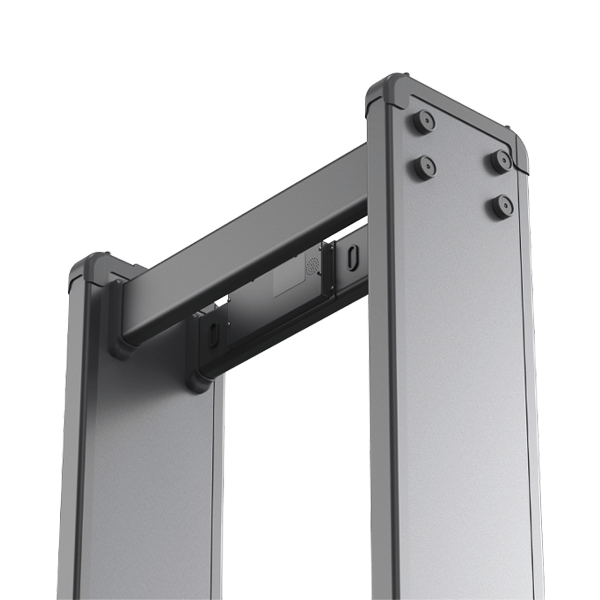

- IP-rated waterproofing: The cross-beam control box is engineered to withstand moisture and dust with IP65, making it ideal for semi-outdoor or humid environments.
- Smart self-diagnostics: Features an auto-scan and self-diagnostic function to ensure the system is always operating at peak efficiency, even for non-technical users.
- Certified safety: Complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is completely harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, photographic film, and videotapes.
Installation condition 330WA
To ensure the 330WA functions with absolute precision, a professional walk through metal detector installation must meet the following environmental criteria:
- Structural stability: The installation surface must be flat and solid to prevent vibrations that can trigger false alarms.
- Metal proximity: Maintain a minimum distance of 10cm (4 inch) from fixed metal objects. For large moving metal objects (like elevators), a distance of 0.5m to 2m (20 – 79 inch) is required.
- Electronic interference: The unit should be positioned 0.5m to 4m (20 – 157 inch) away from electronic sources such as motors, power lines, or monitors to avoid radiated interference.
- Frequency coordination: When operating multiple units side-by-side, different working frequencies must be selected to prevent mutual interference.
Certifications
ProScan Global is committed to global quality and safety benchmarks. The 330WA is fully compliant with CE and FCC certifications, ensuring that our hardware adheres to the highest international standards for electronic safety and electromagnetic compatibility.
After-sales service system
We believe in providing a holistic service experience that supports our clients’ long-term goals:
- Comprehensive care: ProScan offers dedicated post-sale technical support and maintenance to ensure your products remain reliable.
- Target market research: In addition to technical help, we provide our customers with strategic target market research, helping you understand regional security trends and optimize your market.
Shipping
We offer versatile shipping options to meet global logistics needs:
- Sea freight: Optimized for large-scale, cost-effective distribution.
- Air freight: Fast-track delivery for urgent security projects.
- Land transport: Reliable regional shipping for door-to-door installations.
