Description
|
Model name |
330CD |

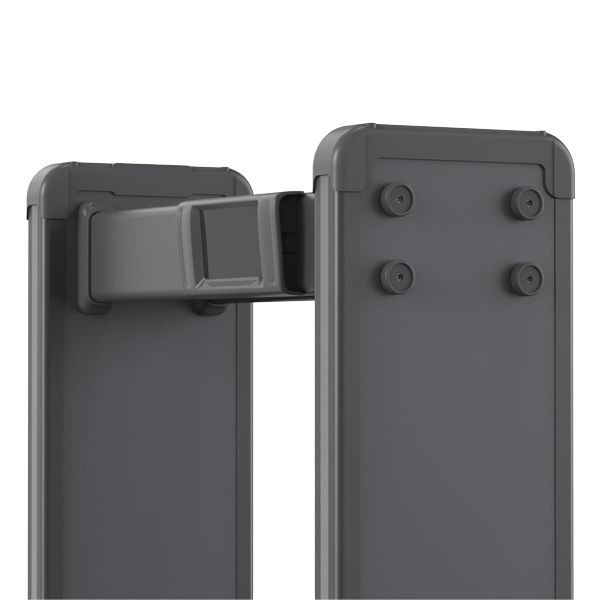

| Display | Screen control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (3 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Packaging dimensions(L*W*H) | 2290*625*190(mm) |

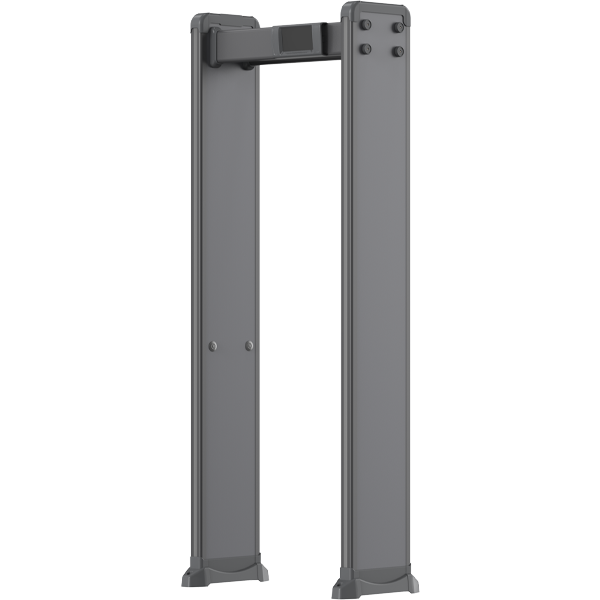

The ProScan Global 330CD is a premier security solution that redefines the standards of multi-zone intelligent walk-through metal detection. At the heart of this state-of-the-art device is a high-definition touchscreen display that provides clear visuals and user-friendly operation steps for maximum efficiency. Engineered with high-quality materials and a patented design for swift installation, the 330CD features an environmental monitoring data display that ensures high performance, high sensitivity, and exceptional stability in any environment.
Key technical features
- Smart detection parameters: Pre-set parameters allow the system to adjust for the weight, volume, size, and location of metal objects, which effectively eliminates false alarms from harmless items like keys, jewelry, and belt buckles.
- Real-time data viewing: Operators can access a real-time data view to monitor security throughput and environmental conditions constantly.
- Networked operation: The system supports networked management, allowing multiple units to be controlled via a single PC for streamlined security operations.
- Intelligent self-diagnostics: Includes a self-diagnostic and auto-scan function to assist unskilled users in maintaining peak device performance.
- High throughput: Designed for efficiency, the system processes an average of 60 detections per minute.
- Advanced safety: Complies with EMC electromagnetic radiation standards and uses low magnetic field technology, making it completely safe for pacemaker users, pregnant women, and sensitive magnetic media like film or floppy disks.
Installation condition 330CD
To achieve the highest level of detection accuracy, a professional walk through metal detector installation must adhere to the following environmental requirements:
- Foundation: The installation floor must be flat and supported by solid structures to prevent vibrations that lead to ghost alarms.
- Metal clearance: Keep fixed metal objects at least 10cm (4 inch) away and maintain a distance of 0.5m to 2m (20-79 inch) from moving metal objects like elevators or large doors.
- Interference shielding: Position the unit 0.5m to 4m (20-157 inch) away from radiated electronic interference sources such as monitors, motors, or power lines.
- Side-by-side calibration: If multiple units are working side-by-side, they must be set to different working frequencies to prevent mutual interference.
Certifications
ProScan Global is dedicated to meeting international safety benchmarks. The 330CD is fully compliant with CE and FCC certifications, ensuring that our hardware adheres to rigorous global standards for electromagnetic compatibility and operational safety.
After-sales service system
We provide a robust support network designed to foster long-term success for our clients:
- Support and care: Comprehensive technical assistance and customer care are provided post-sale to ensure continuous device reliability.
- Target market research: ProScan Global offers a unique value-add by providing clients with specialized market research, helping them understand local security trends and optimize their strategic deployment.
Packaging and shipping
We offer flexible global logistics solutions:
- Sea freight: Ideal for large-scale, cost-effective distribution.
- Air freight: Fast-track shipping for urgent security facility upgrades.
- Land transport: Reliable regional shipping for door-to-door installations.
