Description
| Model name | 308CA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Packaging dimensions(L*W*H) | 2290*565*190mm. |

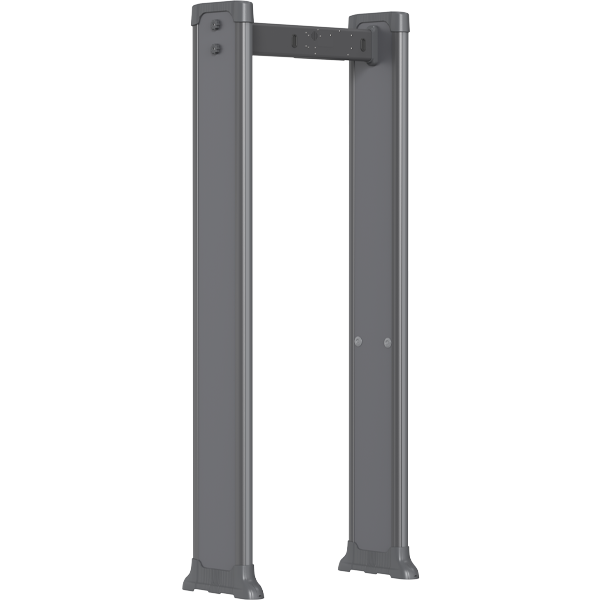

The ProScan Global walk through metal detector 308CA is a sophisticated security solution featuring a specialized cross-beam digital control box. Designed for high-performance security screening, this multi-zone intelligent walk-through metal detector offers a perfect balance of advanced technology and user-centric design. With its high-definition interface and robust construction, the 308CA ensures precise counting and pinpoint detection accuracy, making it an ideal choice for maintaining safety in diverse public and private sectors.
Key technical features
- Environmental data monitoring: The system is equipped with an environmental data display function, offering high performance, high sensitivity, and excellent stability by constantly analyzing the surrounding environment.
- Network connectivity: It supports advanced network connectivity, enabling security teams to manage and monitor multiple devices from a single PC for streamlined operations.
- Smart false alarm reduction: Pre-set parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by common items like keys, jewelry, and belt buckles.
- Health and media safety: The system complies with EMC electromagnetic radiation standards and uses low magnetic field technology. It is completely harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
- Self-diagnostic function: Includes an intelligent self-test and auto-scan system to ensure the equipment is always operating at its optimal state.
Installation condition 308CA
To ensure that the walk through metal detector 308CA operates with maximum precision and avoids interference, a professional walk through metal detector installation must adhere to the following environmental requirements:
- Stable ground: The installation floor must be flat and solid to eliminate any vibrations that could lead to false alarms.
- Metal clearance: Keep fixed metal objects at least 10cm (4 inch) away. For large moving metal objects like elevators or revolving doors, maintain a distance of 0.5m to 2m (20 – 79 inch).
- Electronic environment: The unit should be positioned 0.5m to 4m (20 – 157 inch) away from electronic interference sources, such as power lines, motors, or computer monitors.
- Side-by-side calibration: When operating multiple units close together, different working frequencies must be set to prevent mutual signal interference.
Certifications
ProScan Global is dedicated to upholding international safety and quality standards. The 308CA fully meets CE and FCC certifications, ensuring that our hardware adheres to rigorous global regulations for electromagnetic compatibility and operational safety.
After-sales service system
We offer a comprehensive support network designed to ensure long-term value for our clients:
- Dedicated customer care: Our post-sale support includes technical assistance and maintenance care to ensure your system remains reliable and efficient.
- Target market research: As a unique value-added service, ProScan Global provides clients with target market research insights, helping you understand local security trends and optimize your strategic deployment effectively.
Shipping
To ensure global accessibility and timely delivery, ProScan Global offers flexible shipping options tailored to your logistical requirements:
- Sea freight: An economical solution for large-scale and bulk distribution.
- Air freight: Fast-track delivery for urgent project upgrades.
- Land transport: Reliable regional shipping for local business.
