Description
| Model name | 468SA |

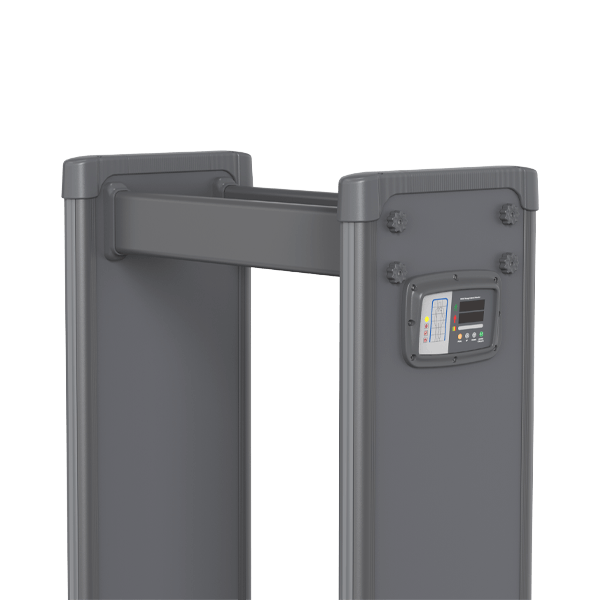

| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Packaging dimensions(L*W*H) | 2290*680*200mm. |

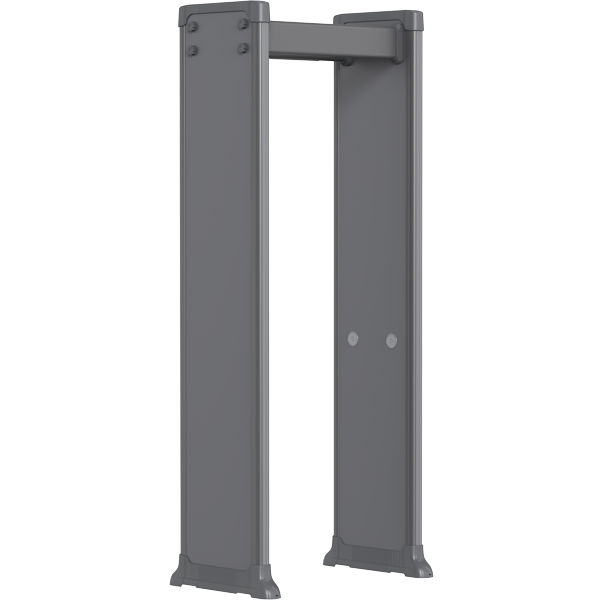

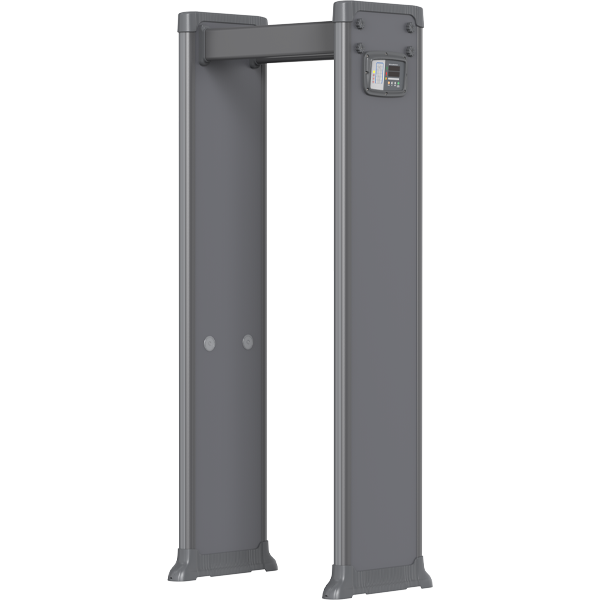

The walk-through metal detector ProScan Global 468SA is a high-performance walk-through metal detector featuring a specialized side panel digital control box. Designed for precision and ease of use, this model offers a streamlined aesthetic without compromising on security depth. It is an ideal solution for venues requiring high-sensitivity screening, such as airports, government facilities, and industrial sites, providing a seamless balance between advanced technology and operational efficiency.
Key technical features
- Environmental monitoring: The system features an environmental monitoring data display, offering high performance, high sensitivity, and excellent stability by detecting and adapting to surrounding interference.
- Network management: It supports robust network connectivity, allowing security teams to manage and monitor multiple 468SA units through a single centralized PC.
- Intelligent discrimination: Pre-set parameters can adjust for the weight, volume, size, and position of metal objects. This effectively eliminates false alarms caused by everyday items like keys, jewelry, and belt buckles.
- Certified safety technology: The system complies with EMC electromagnetic radiation standards and adopts low magnetic field technology. It is certified harmless to pacemaker users, pregnant women, and magnetically sensitive materials such as floppy disks, films, and videotapes.
Installation condition 468SA
To achieve optimal detection accuracy and minimize interference, a professional walk through metal detector installation must adhere to the following conditions:
- Floor stability: The unit must be placed on a flat, solid surface to prevent vibrations that could trigger false alarms.
- Metal clearance: Maintain a minimum distance of 10cm from stationary metal objects and at least 0.5m to 2m from large moving metal structures like elevators or automatic gates.
- Electronic interference: Position the unit 0.5m to 4m away from sources of electromagnetic noise, such as high-voltage cables, motors, or power transformers.
- Multi-unit alignment: When installing multiple units side-by-side, ensure a minimum distance of 50cm and use different frequency channels to avoid mutual interference.
Certifications
ProScan Global is dedicated to meeting international quality benchmarks. The 468SA fully complies with CE and FCC standards, ensuring that our hardware meets rigorous global requirements for electromagnetic compatibility, health safety, and operational reliability.
After-sales service system
We offer a comprehensive support network that extends far beyond the initial purchase:
- Full-cycle customer care: Our post-sale system includes dedicated technical support and rapid-response maintenance.
- Strategic market research: As a unique value-added service, ProScan Global provides clients with target market research insights, helping you understand local security trends and optimize your business in the market.
Shipping
To ensure global accessibility and the safe arrival of our high-precision technology, ProScan Global offers versatile logistics solutions:
- Flexible shipping modes: We provide shipping via Sea, Air, and Land freight to accommodate various timelines and budget requirements.
- Secure transit: Our logistics network is optimized for international distribution, ensuring that every 468SA unit is handled with extreme care from our facility to your door.
