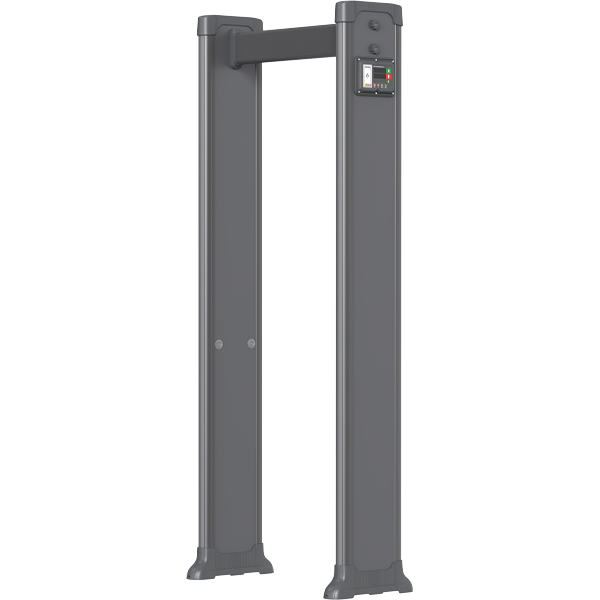

walk through metal detector 308sa

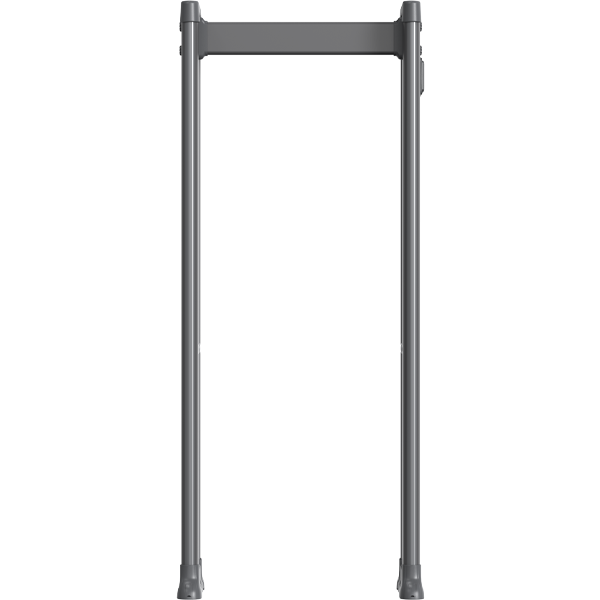

front of walk through metal detector 308sa

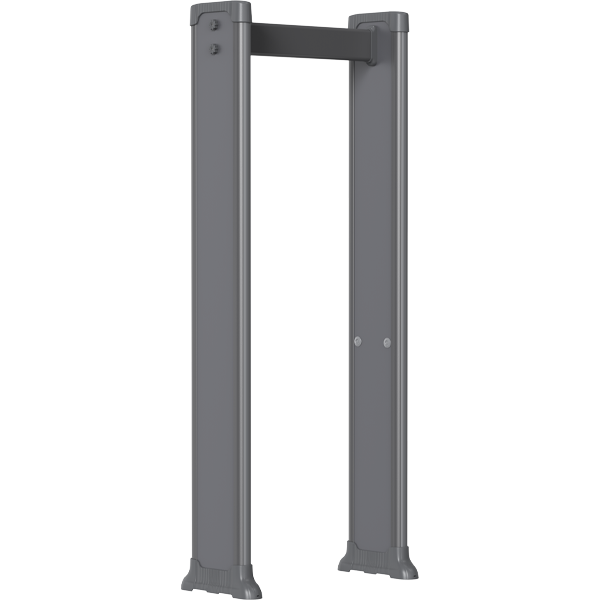

right of walk through metal detector 308sa

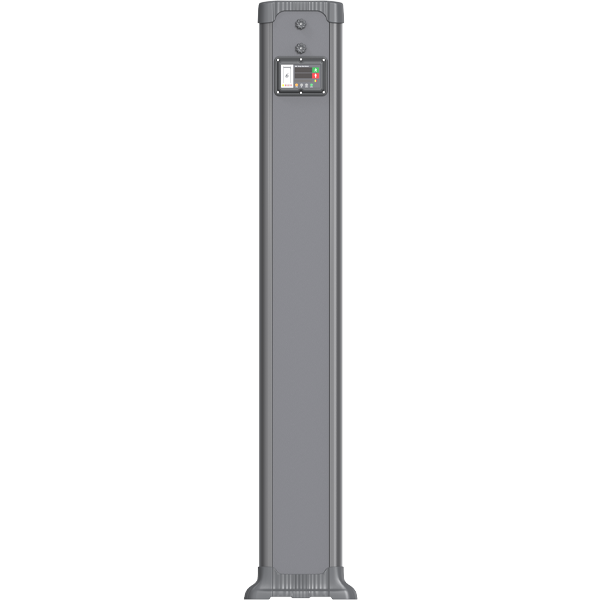

back of walk through metal detector 308sa

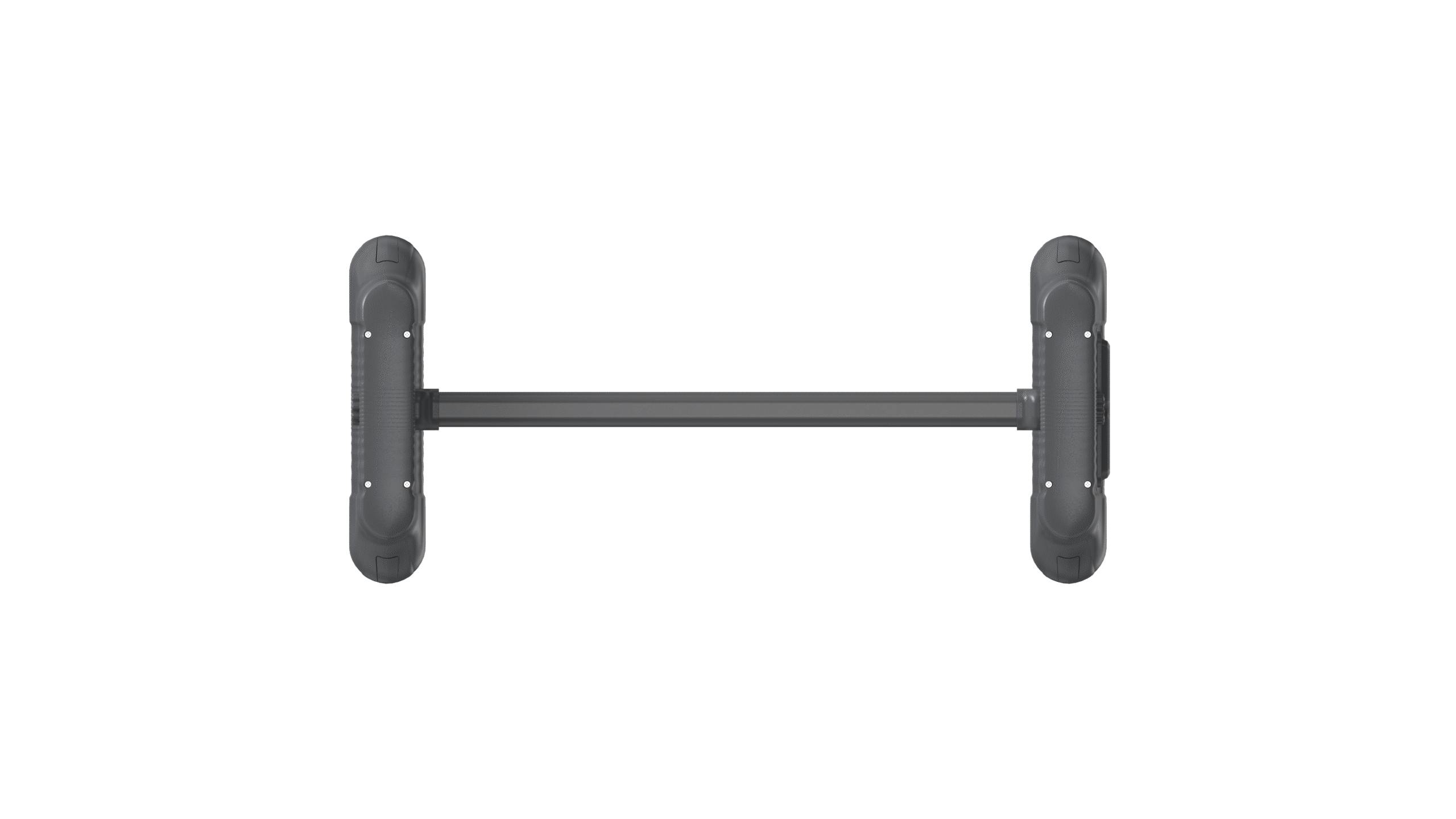

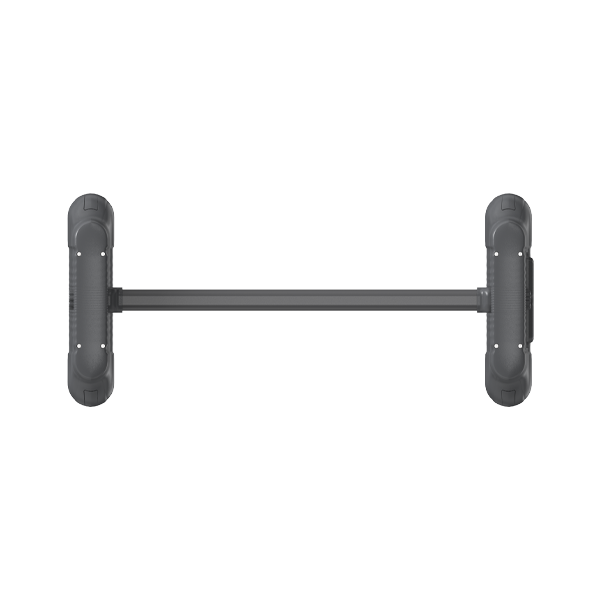

top of walk through metal detector 308sa

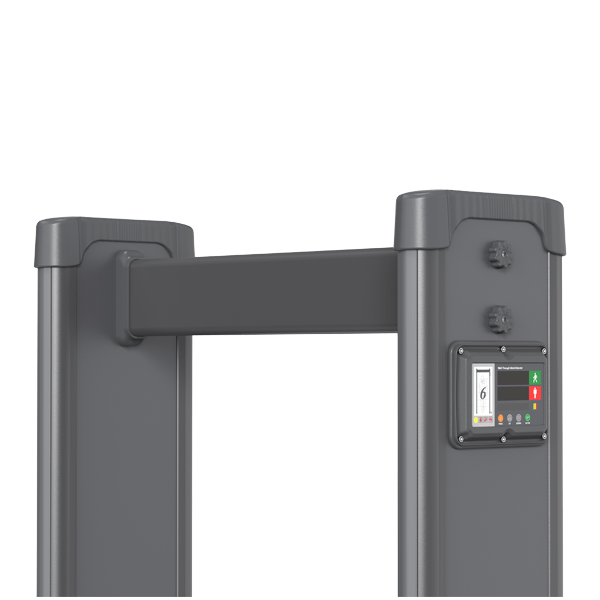

screen of walk through metal detector 308sa

Side Panel Digital Control Box 308SA

Model: 308SA

Zone: 1 to 93 zone

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Technical: Self-diagnoses, zone sensitivity adjustment, real-time data view.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 2204*870*419mm.
  • Passage size (H*W*D): 2013*720*419mm (The width of passage can be custom from 700 – 1500mm).

Weight: Net weight 31kg, Gross weight 36kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, zone, dimension, coils, lights, battery management system.

The walk-through metal detector side panel digital control box 308SA is an ergonomic security solution designed for high-efficiency screening and effortless operation. This model features specialized 308mm wide panels, providing an enhanced physical footprint that ensures superior structural stability in busy environments. A key feature of this unit is its side panel configuration, which places the digital control box at the side of the panel rather than overhead, allowing security personnel to easily monitor the LED display. By combining this accessible side-mounted interface with a robust panel base, the 308SA delivers a practical and highly reliable metal detection system for modern security checkpoints.

Description

Model name 308SA
Display Digital control box 7 inch
Detection mode Automatic/ Infrared detection mode (4 options)
Maximum detection distance 20 – 2000mm (vertical)
Throughput 60 detection per min on the average.
Sensitivity level 0-255
Detection zone Adjustable (Up to 93 zone)
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current 0.8A
Operating power 12W
Operating time 24/7 operation capability
Detection sound alert 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator 2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency 0-99
Operating temperature -20 to 65 C
Packaging dimensions(L*W*H) 2290*520*200mm.

The ProScan Global 308SA is a state-of-the-art security screening solution featuring a specialized side panel digital control box. Designed for high-performance security environments, this multi-zone intelligent walk-through metal detector offers a perfect balance of advanced technology and ergonomic design. With its high-definition interface and robust build, the 308SA ensures precise counting and pinpoint detection accuracy, providing a reliable security barrier for airports, government buildings, and commercial facilities.

Key technical features

  • Environmental data monitoring: The system is equipped with an environmental data display function, offering high performance, high sensitivity, and excellent stability by constantly analyzing surrounding conditions.
  • Network connectivity: It supports advanced network connectivity, enabling security personnel to manage and monitor multiple 308SA units efficiently from a single PC.
  • Smart false alarm reduction: Pre-set detection parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by common personal items like keys, jewelry, and belt buckles.
  • Safety and compatibility: The system complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
  • Intelligent self-diagnostics: Includes a self-diagnostic and auto-scan function to ensure the device is always operating at peak performance, assisting users in maintaining maximum security integrity.

Installation condition 308SA

To ensure the 308SA delivers the highest level of detection accuracy, a professional walk through metal detector installation must adhere to the following environmental requirements:

  • Stable foundation: The floor must be flat and solid to prevent any vibration that could lead to “ghost” alarms.
  • Metal clearance: Keep fixed metal objects at least 10cm (4 inch) away and maintain a distance of 0.5m to 2m (20 – 79 inch) from large moving metal structures like elevators or large gates.
  • Interference mitigation: Position the unit 0.5m to 4m (20 – 157 inch) away from electronic interference sources, such as power lines, motors, or monitors.
  • Frequency coordination: When operating multiple units side-by-side, ensure each device is set to a unique working frequency to prevent mutual signal interference.

Certifications

ProScan Global is committed to international safety and quality standards. The walk through metal detector 308SA is fully compliant with CE and FCC certifications, ensuring that our hardware meets rigorous global requirements for electromagnetic compatibility and operational safety.

After-sales service system

We provide a comprehensive support ecosystem designed to ensure the long-term success of our clients:

  • Premium customer support: Our after-sales service includes dedicated technical assistance and customer care to ensure your equipment remains in top condition.
  • Strategic growth support: As a unique value-add, ProScan Global provides clients with target market research insights, helping you understand local security trends and optimize your strategic deployment effectively.

Shipping

To ensure global accessibility and timely delivery, ProScan Global offers versatile logistics solutions through multiple transportation modes:

  • Sea freight: An economical and reliable option for large-scale distribution.
  • Air freight: Fast-track delivery for urgent facility security upgrades.
  • Land transport: Reliable regional shipping for door-to-door installations.
