Description
| Model name | 308SWA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Waterproof | IP65 |
| Packaging dimensions(L*W*H) | 2290*520*200mm. |

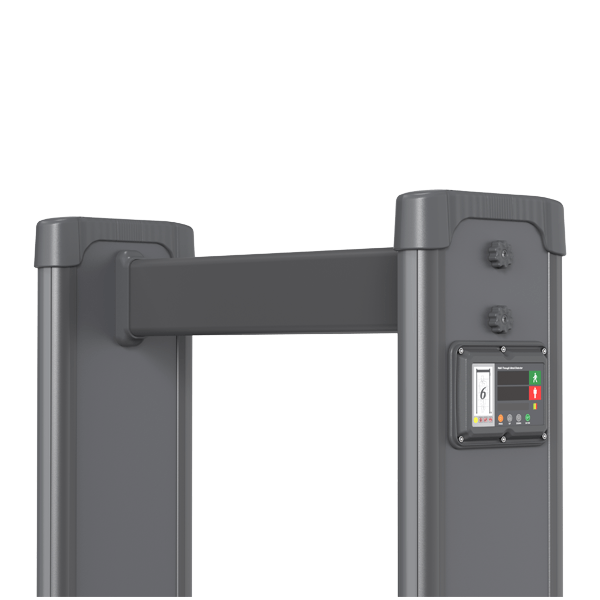

The ProScan Global 308SA is a state-of-the-art security screening solution featuring a specialized side panel digital control box. Designed for high-performance security environments, this multi-zone intelligent walk-through metal detector offers a perfect balance of advanced technology and ergonomic design. With its high-definition interface and robust build, the 308SA ensures precise counting and pinpoint detection accuracy, providing a reliable security barrier for airports, government buildings, and commercial facilities.
Key technical features
- Environmental data monitoring: The system is equipped with an environmental data display function. It offers high performance, high sensitivity, and excellent stability by constantly monitoring and adapting to surrounding conditions.
- Intelligent false alarm reduction: Pre-set detection parameters allow for precise adjustment of the weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by personal items like keys, jewelry, and belt buckles.
- Network management capability: The 308SWA supports network connectivity, enabling security teams to manage and monitor multiple devices seamlessly from a single PC.
- Health and media safety: Complies with global EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
- Rugged waterproofing: The control box and panels are designed with advanced waterproofing technology, ensuring the unit remains operational and reliable in humid or wet environments.
Installation condition 308SWA
To guarantee that the system maintains its high sensitivity and avoids interference, a professional walk through metal detector installation must account for the following environmental factors:
- Foundation: The unit must be placed on a flat, solid surface to prevent vibrations that could trigger “ghost” alarms.
- Metal separation: Maintain a minimum distance of 10cm (4 inch) from fixed metal objects and 0.5m to 2m (20 – 79 inch) from moving metal structures (such as elevators or automatic doors).
- Electrical clearance: Position the detector 0.5m to 4m (20 – 157 inch) away from electronic interference sources like power lines, motors, or high-power monitors.
- Frequency coordination: If installing multiple units side-by-side, each device must be configured to a unique working frequency to prevent mutual signal interference.
Certifications
ProScan Global is committed to upholding international safety and quality benchmarks. The 308SWA meets all mandatory requirements for CE and FCC certifications, ensuring that our hardware adheres to the highest standards for electromagnetic compatibility and operational safety worldwide.
After-sales service system
We provide a comprehensive support ecosystem designed to empower our clients long after the initial purchase:
- Dedicated customer care: Our post-sale support includes rapid-response technical assistance and routine maintenance care to ensure your business success.
- Strategic market insights: ProScan Global goes beyond technical help by providing customers with target market research, assisting you in understanding local security trends and optimizing your deployment strategies for maximum success.
Shipping
To ensure global reach and efficient delivery, ProScan Global utilizes versatile shipping methods tailored to your logistical needs:
- Shipping modes: We support professional distribution via sea, air, and land freight.
- Automated protection: All units are packaged using automated packaging equipment to ensure consistent, high-strength protection, guaranteeing that the high-precision equipment arrives in perfect condition.
