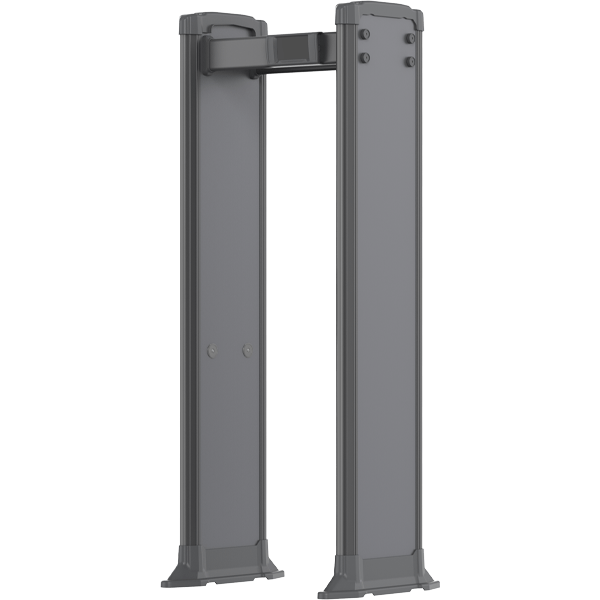

Walk-through Metal Detector Cross-beam Touch Screen Control Box 500CD

Description

Model name	500CD
Display	Screen control box 7 inch
Detection mode	Automatic/ Infrared detection mode (4 options)
Maximum detection distance	20 – 2000mm (vertical)
Throughput	60 detection per min on the average.
Sensitivity level	0-255
Detection zone	Adjustable (Up to 93 zone)
Smallest metal objects detected	Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply	AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current	0.8A
Operating power	12W
Operating time	24/7 operation capability
Detection sound alert	16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator	2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands	Ferrous and non-ferrous metal weapons
Enclosure material	Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency	0-99
Operating temperature	-20 to 65 C
Packaging dimensions(LWH)	2330560785mm.

The ProScan Global walk through metal detector 500CD is a top-tier security screening solution featuring an advanced cross-beam touch screen control box. This model represents the next generation of multi-zone intelligent detection, integrating a high-definition touch interface that provides clear visuals and intuitive operation steps. Engineered for high-traffic environments, the 500CD combines high sensitivity with exceptional stability, offering a seamless and professional security experience for modern checkpoints.

Key technical features

Advanced environmental monitoring: The system is equipped with an environmental data display function, allowing it to provide high performance and high sensitivity by constantly monitoring surrounding conditions.
Network connectivity: It supports seamless networked operation, enabling security personnel to manage and monitor multiple 500CD units from a single PC.
Precision discrimination: Pre-set detection parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by harmless items like keys, jewelry, and belt buckles.

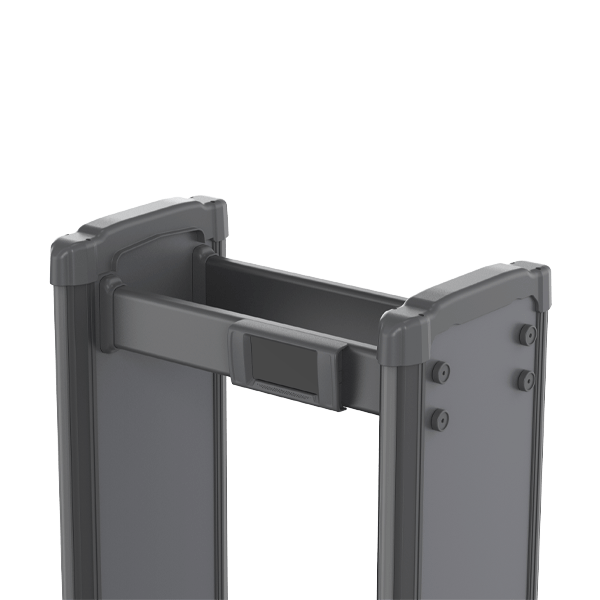

Modern touch interface: The high-resolution touch screen control box simplifies the user experience, providing real-time data and easy-to-navigate settings for pinpoint detection.
Certified safety standards: The system complies with EMC electromagnetic radiation standards and uses low magnetic field technology. It is certified safe for pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.

Installation condition 500CD

To ensure the highest level of detection accuracy and reliability, a professional walk through metal detector installation must follow these environmental requirements:

Stable foundation: The installation floor must be flat and solid to prevent vibrations, which can trigger “ghost” alarms.
Metal clearance: Maintain a minimum distance of at least 10cm (4 inch) from stationary metal objects and 0.5m to 2m (20 – 79 inch) from large moving metal structures (such as elevators or large gates).
Interference shielding: Position the unit 0.5m to 4m (20 – 157 inch) away from electronic interference sources, including power lines, motors, or monitors.
Frequency coordination: When operating multiple units side-by-side, each device must be set to a different working frequency to prevent mutual signal interference.

Certifications

ProScan Global hardware is built to meet the most stringent international standards. The walk through metal detector 500CD is fully compliant with CE and FCC certifications, ensuring that the equipment adheres to global benchmarks for electromagnetic compatibility and operational safety.

After-sales service system

We believe in building long-term partnerships through a robust support network:

Comprehensive care: ProScan Global provides dedicated after-sales customer care and technical support to ensure your security system remains in peak condition.
Target market research: As a unique value-add, we provide our clients with target market research insights, helping you understand local security trends and optimize your strategic deployment effectively.
