Description
| Model name | 468SWA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Waterproof | IP65 |
| Packaging dimensions(L*W*H) | 2290*680*200mm. |

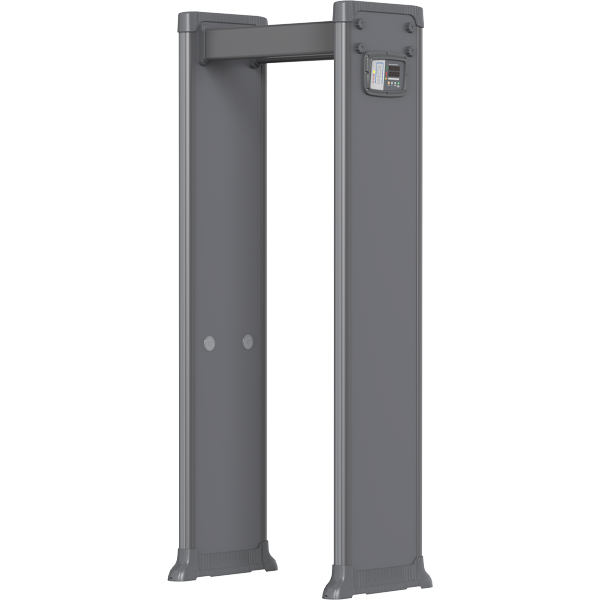

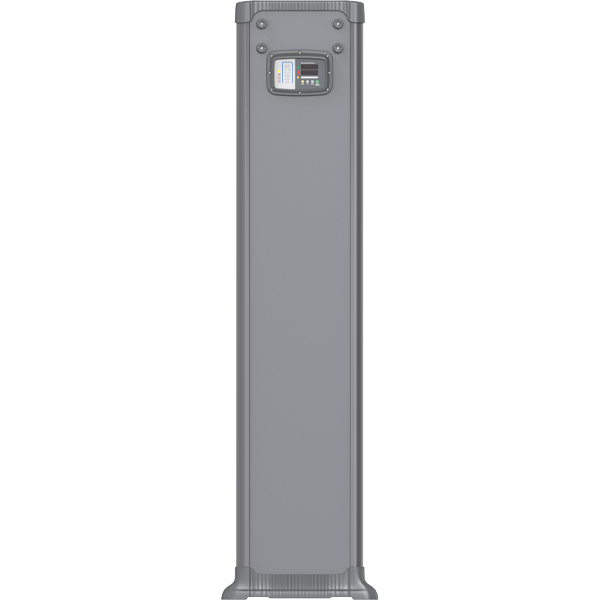

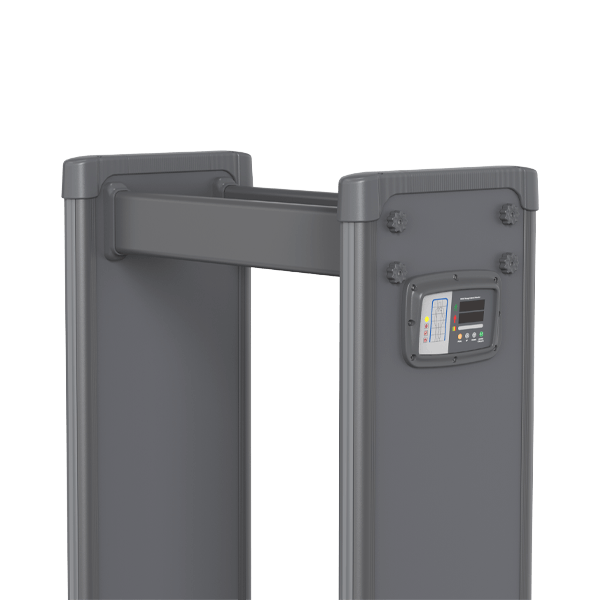

The walk-through metal detector ProScan Global 468SWA is a high-performance security portal featuring a specialized waterproof side panel digital control box. This model is expertly engineered to provide multi-zone intelligent detection in demanding environments. By integrating a high-definition digital interface into a weather-resistant side panel, the 468SWA delivers a streamlined aesthetic alongside the rugged durability required for stadiums, and industrial sites exposed to varying environmental conditions.
Key technical features
- Environmental intelligence: The system features an environmental monitoring data display, offering high performance, high sensitivity, and excellent stability by constantly analyzing and adapting to surrounding interference.
- Networked management: Supports robust network connectivity, allowing security teams to manage and monitor multiple 468SWA units through a single centralized PC for synchronized operations.
- Intelligent object discrimination: Pre-set parameters can adjust for the weight, volume, size, and position of metal objects. This technology effectively eliminates false alarms caused by common personal items such as keys, jewelry, and belt buckles.
- Safety and health standards: The system complies with EMC electromagnetic radiation standards and adopts low magnetic field technology. It is certified harmless to pacemaker users, pregnant women, and magnetically sensitive materials like floppy disks, films, and videotapes.
- Advanced waterproofing: The control box and side panels are designed to resist water ingress with IP65, ensuring the electronics remain protected in humid or semi-outdoor settings.
Installation condition 468SWA
To ensure that the 468SWA maintains its high sensitivity and accuracy, a professional walk through metal detector installation must be performed according to the following requirements:
- Surface stability: The unit must be installed on a flat, solid surface to prevent vibrations that could trigger “ghost” alarms.
- Metal separation: Maintain a minimum distance of 10cm from stationary metal objects and at least 0.5m to 2m from moving metal structures (such as elevators or revolving doors).
- Electrical environment: Position the detector 0.5m to 4m away from electronic interference sources like power lines, large motors, or high-power monitors.
- Frequency calibration: When deploying multiple units in close proximity, each device must be configured to a unique working frequency to prevent mutual signal interference.
Certifications
ProScan Global is dedicated to meeting rigorous international standards. The 468SWA fully complies with CE and FCC certifications, ensuring that the hardware meets global benchmarks for electromagnetic compatibility, health safety, and operational reliability.
After-sales service system
We provide a comprehensive support ecosystem designed to foster long-term customer success:
- Premium customer care: Our post-sale support includes rapid technical assistance and routine maintenance care to keep your business in peak condition.
- Target market research: As a unique value-added service, ProScan Global provides clients with target market research insights, helping you understand local security trends and optimize your screening strategies for maximum effectiveness.
Shipping
To facilitate global reach and safe delivery, ProScan Global offers versatile logistics solutions through professional transport modes:
- Flexible shipping: We support international distribution via Sea, Air, and Land freight to accommodate any timeline or budget.
- Safe transit: Our logistics network is optimized to deliver high-precision security equipment safely to your destination, ensuring it arrives ready for immediate deployment.
