Description
| Model name | 468WA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Waterproof | IP65 |
| Packaging dimensions(L*W*H) | 2290*745*190mm. |

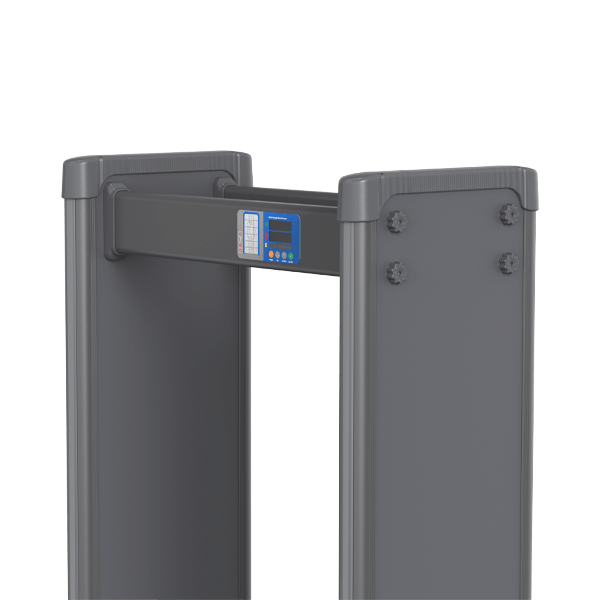

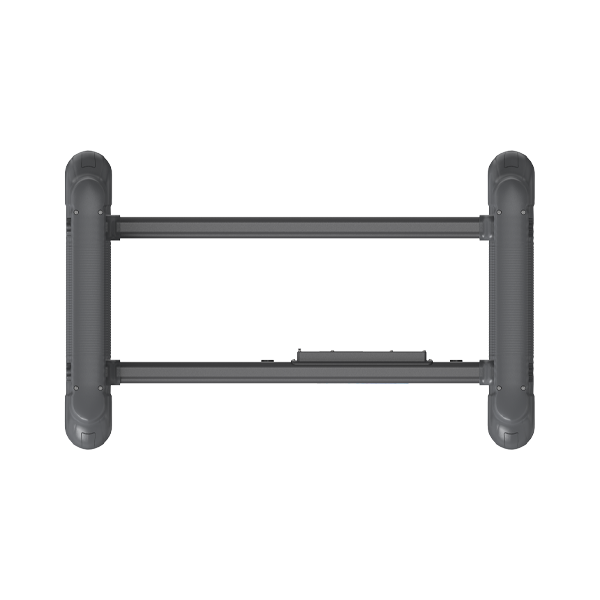

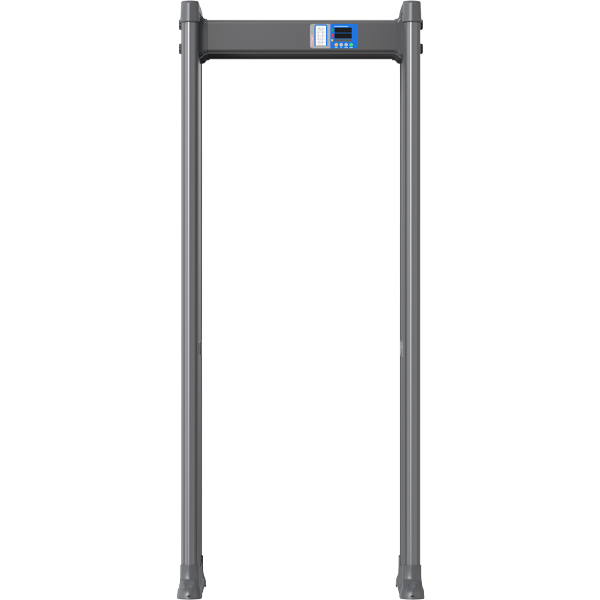

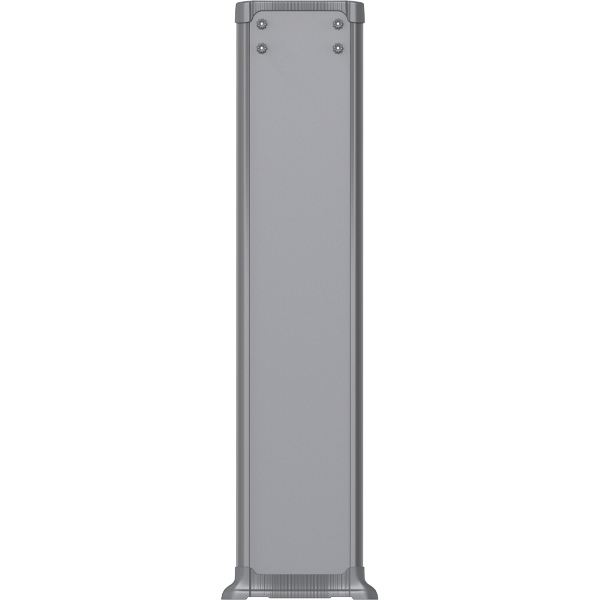

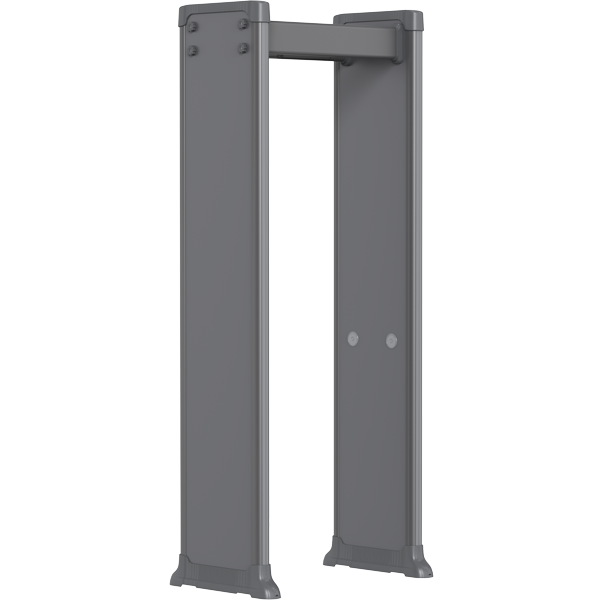

The walk-through metal detector ProScan Global 468WA is a high-end walk-through metal detector featuring a specialized waterproof cross-beam digital control box. Engineered for versatility, this model is designed to operate reliably in high-traffic environments where environmental factors like humidity or light rain may be present. With its robust multi-zone detection technology and durable construction, the 468WA offers an elite security barrier for stadiums, outdoor venues, and industrial facilities.
Key technical features
- Environmental intelligence: The system features an environmental monitoring data display, offering high performance, high sensitivity, and excellent stability by constantly analyzing surrounding interference.
- Weatherproof reliability: Equipped with a waterproof cross-beam control box with IP65, the 468WA is built to maintain peak performance even in challenging environmental conditions.
- Network management: It supports robust network connectivity, allowing security teams to manage and monitor multiple units seamlessly through a single centralized PC.
- Intelligent false alarm suppression: Pre-set parameters can adjust for the weight, volume, size, and position of metal objects. This technology effectively eliminates false alarms caused by common items such as keys, jewelry, and belt buckles.
- Health and media safety: The system complies with EMC electromagnetic radiation standards and adopts low magnetic field technology. It is certified harmless to pacemaker users, pregnant women, and magnetically sensitive materials such as floppy disks, films, and videotapes.
Installation condition 468WA
To ensure the 468WA delivers maximum accuracy and longevity, a professional walk through metal detector installation should be performed according to the following guidelines:
- Stable foundation: The floor must be flat and solid to prevent vibrations that could trigger false alarms.
- Metal separation: Maintain a minimum distance of 10cm from stationary metal objects. Large moving metal structures (such as elevators or revolving doors) should be at least 0.5m to 2m away.
- Interference mitigation: Position the device 0.5m to 4m away from electronic interference sources like power cables, large motors, or high-power monitors.
- Frequency settings: When operating multiple units side-by-side, each device must be set to a different working frequency to prevent mutual signal interference.
Certifications
ProScan Global hardware is built to meet the most stringent international standards. The 468WA is fully compliant with CE and FCC certifications, ensuring that the equipment adheres to global benchmarks for safety, health, and electromagnetic compatibility.
After-sales service system
Our commitment to your business extends far beyond the point of purchase:
- Comprehensive care: We provide a dedicated support system for post-sale assistance and technical customer care to ensure your equipment remains in peak condition.
- Strategic market support: As a unique value-add, ProScan Global provides clients with target market research insights, helping you understand local security trends and optimize your deployment for specific operational goals.
Shipping
To ensure global accessibility and the safe arrival of our high-precision technology, ProScan Global offers versatile logistics solutions:
- Global shipping modes: We support professional distribution via Sea, Air, and Land freight to accommodate any timeline or budget requirement.
- Secure transit: Our logistics network is optimized for international distribution, ensuring every unit reaches its destination safely and ready for immediate deployment.
