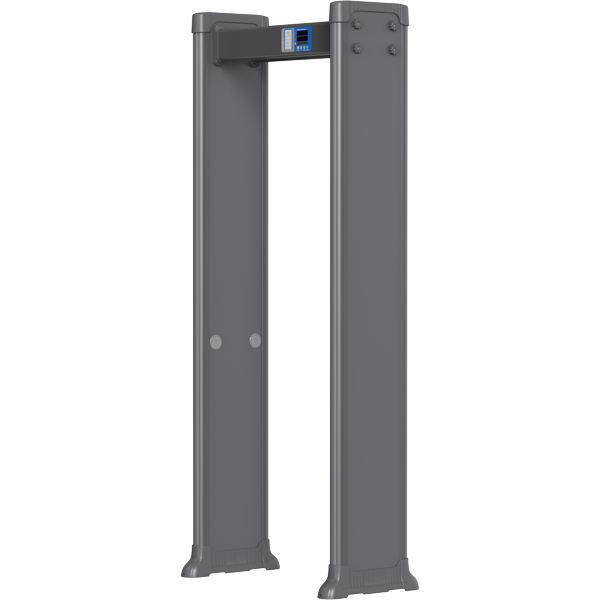

walk through metal detector 368wa

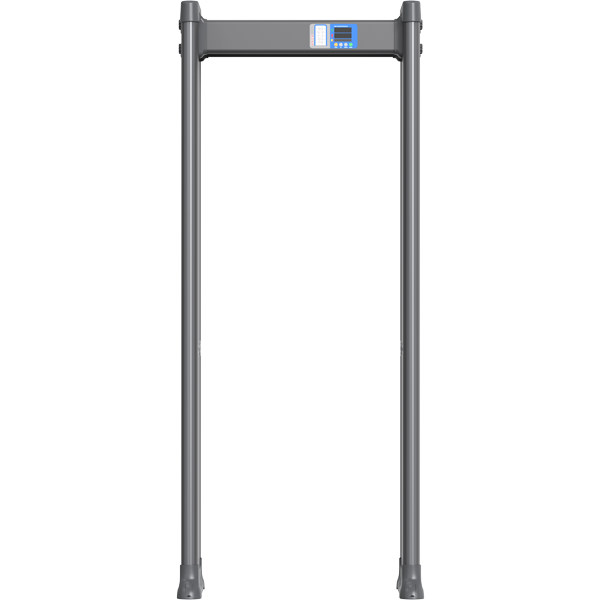

front of walk through metal detector 368wa

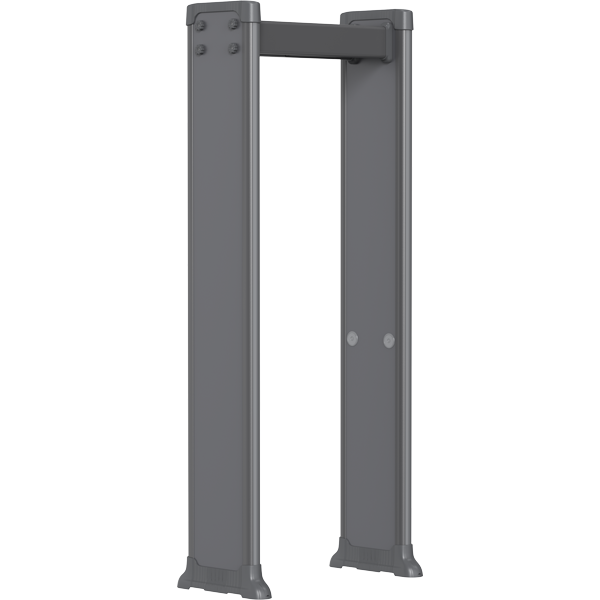

right of walk through metal detector 368wa

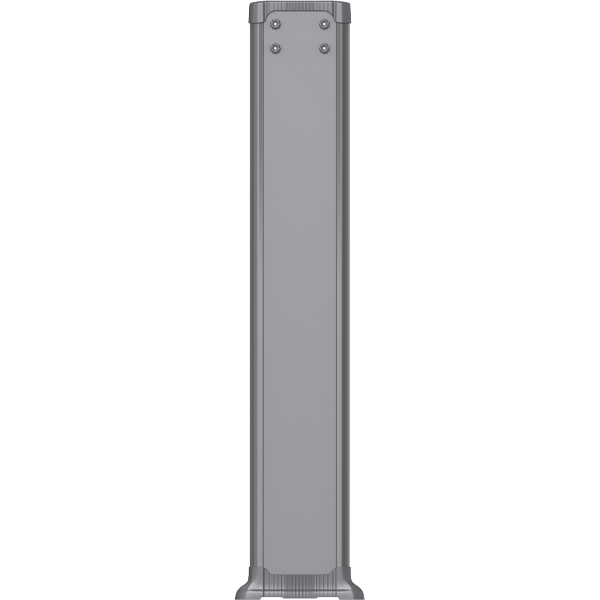

back of walk through metal detector 368wa

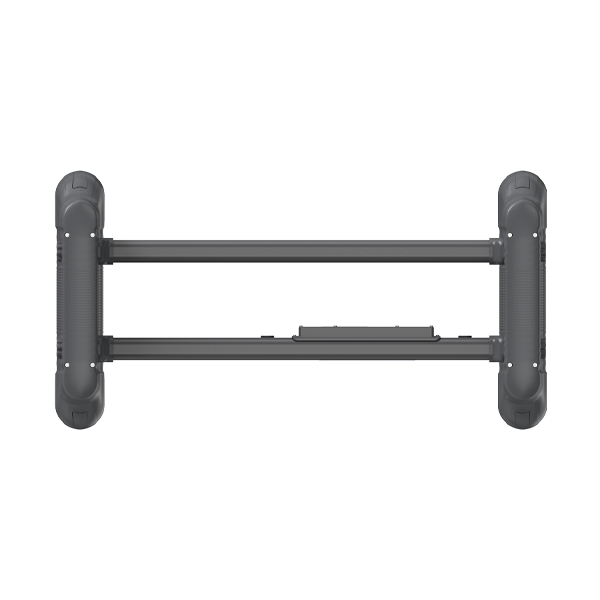

top of walk through metal detector 368wa

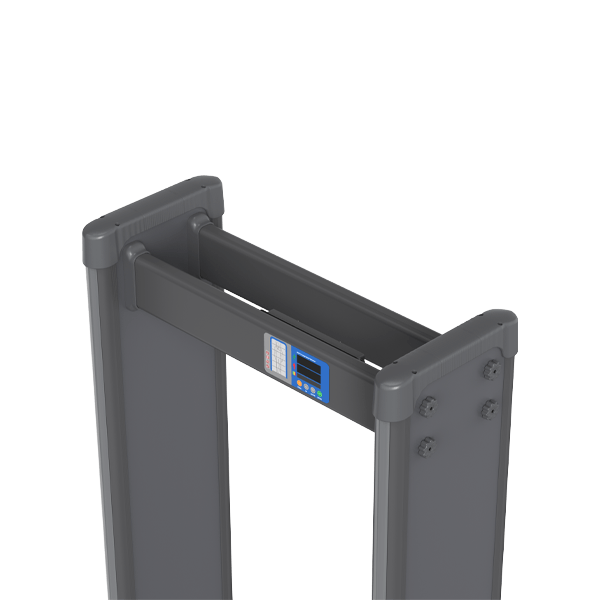

screen of walk through metal detector 368wa

Waterproof Cross-beam Digital Control Box 368WA

Model: 368WA

Zone: 1 to 93 zone

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Technical: Self-diagnoses, zone sensitivity adjustment, real-time data view.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 2204*870*480mm.
  • Passage size (H*W*D): 2010*720*480mm (The width of passage can be custom from 700 – 1500mm).

Weight: Net weight 34kg, Gross weight 40kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, zone, dimension, coils, lights, battery management system.

The walk-through metal detector waterproof cross-beam digital control box 368WA is a high-performance security gateway engineered for maximum durability in challenging environments. The unit is anchored by a robust top-mounted crossbeam which houses the digital control box, featuring a high-visibility LED display and tactile physical buttons for dependable, manual operation. Most importantly, the entire system is reinforced with advanced waterproof technology, protecting the sensitive digital components from moisture and harsh weather. By combining its stable 368mm base with a weather-resistant cross-beam architecture, the 368WA delivers a powerful and reliable screening experience for professional outdoor security installations.

Description

Model name 368WA
Display Digital control box 7 inch
Detection mode Automatic/ Infrared detection mode (4 options)
Maximum detection distance 20 – 2000mm (vertical)
Throughput 60 detection per min on the average.
Sensitivity level 0-255
Detection zone Adjustable (Up to 93 zone)
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current 0.8A
Operating power 12W
Operating time 24/7 operation capability
Detection sound alert 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator 2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency 0-99
Operating temperature -20 to 65 C
Waterproof IP65
Packaging dimensions(L*W*H) 2290*526*190mm.

The walk-through metal detector ProScan Global 368WA is a high-performance security solution featuring a specialized waterproof cross-beam digital control box. Engineered for both indoor and outdoor environments, this model offers a robust multi-zone intelligent detection system. With its sleek design and durable construction, the 368WA is built to deliver precision and reliability, making it the ideal choice for high-traffic areas where environmental resilience is as critical as security performance.

Key technical features

  • Environmental intelligence: The system is equipped with an environmental data display function, offering high performance, high sensitivity, and excellent stability by constantly monitoring surrounding conditions.
  • Smart false alarm suppression: Pre-set parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by common personal items like keys, jewelry, and belt buckles.
  • Network connectivity: It supports advanced network connectivity, enabling multiple 368WA devices to be managed and monitored seamlessly from a single PC.
  • Health and media safety: The system complies with EMC electromagnetic radiation standards and uses low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
  • Weatherproof design: Featuring a waterproof cross-beam control box, the 368WA is designed to withstand humidity, ensuring stable operation where other devices might fail.

Installation condition 368WA

To ensure the 368WA operates with peak accuracy, a professional walk through metal detector installation must follow these environmental requirements:

  • Stable foundation: The floor must be flat and solid to prevent vibrations that could trigger false alarms.
  • Metal clearance: Keep fixed metal objects at least 10cm (4 inch) away. For large moving metal structures like elevators or sliding gates, maintain a distance of 0.5m to 2m(20 – 79 inch).
  • Interference mitigation: Position the unit 0.5m to 4m (20 – 157 inch) away from electronic interference sources, such as power lines, motors, or high-power monitors.
  • Frequency coordination: When operating multiple units side-by-side, each device must be set to a unique working frequency to prevent mutual signal interference.

Certifications

ProScan Global is dedicated to meeting international quality and safety benchmarks. The 368WA fully complies with CE and FCC certifications, ensuring that our hardware adheres to rigorous global standards for electromagnetic compatibility and operational safety.

After-sales service system

We offer a comprehensive support network designed to ensure your long-term success:

  • Premium customer support: Our post-sale support includes dedicated technical assistance and customer care to maintain your business in optimal condition.
  • Strategic value-add: ProScan Global provides clients with target market research insights, helping you understand regional security trends and optimize your strategic deployment effectively.

Shipping

To facilitate global accessibility and timely delivery, ProScan Global offers versatile logistics solutions through various transport modes:

  • Sea freight: An economical solution for large-scale and bulk distribution.
  • Air freight: Fast-track delivery for urgent facility security upgrades.
  • Land transport: Reliable regional shipping for door-to-door installations.
