Description
| Model name | 368SWA |
| Display | Digital control box 7 inch |
| Detection mode | Automatic/ Infrared detection mode (4 options) |
| Maximum detection distance | 20 – 2000mm (vertical) |
| Throughput | 60 detection per min on the average. |
| Sensitivity level | 0-255 |
| Detection zone | Adjustable (Up to 93 zone) |
| Smallest metal objects detected | Φ22.25*T1.85 mm(Steel-nickel Alloy) |
| Power supply | AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ |
| Operating current | 0.8A |
| Operating power | 12W |
| Operating time | 24/7 operation capability |
| Detection sound alert | 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB) |
| Detection visual indicator | 2 sets of LEDs (red) evenly distributed on left and right door panels |
| Detected contrabands | Ferrous and non-ferrous metal weapons |
| Enclosure material | Flame retardant ABS polymer, medium density fiberboard, PVC |
| Operating frequency | 0-99 |
| Operating temperature | -20 to 65 C |
| Waterproof | IP65 |
| Packaging dimensions(L*W*H) | 2280*580*200mm. |

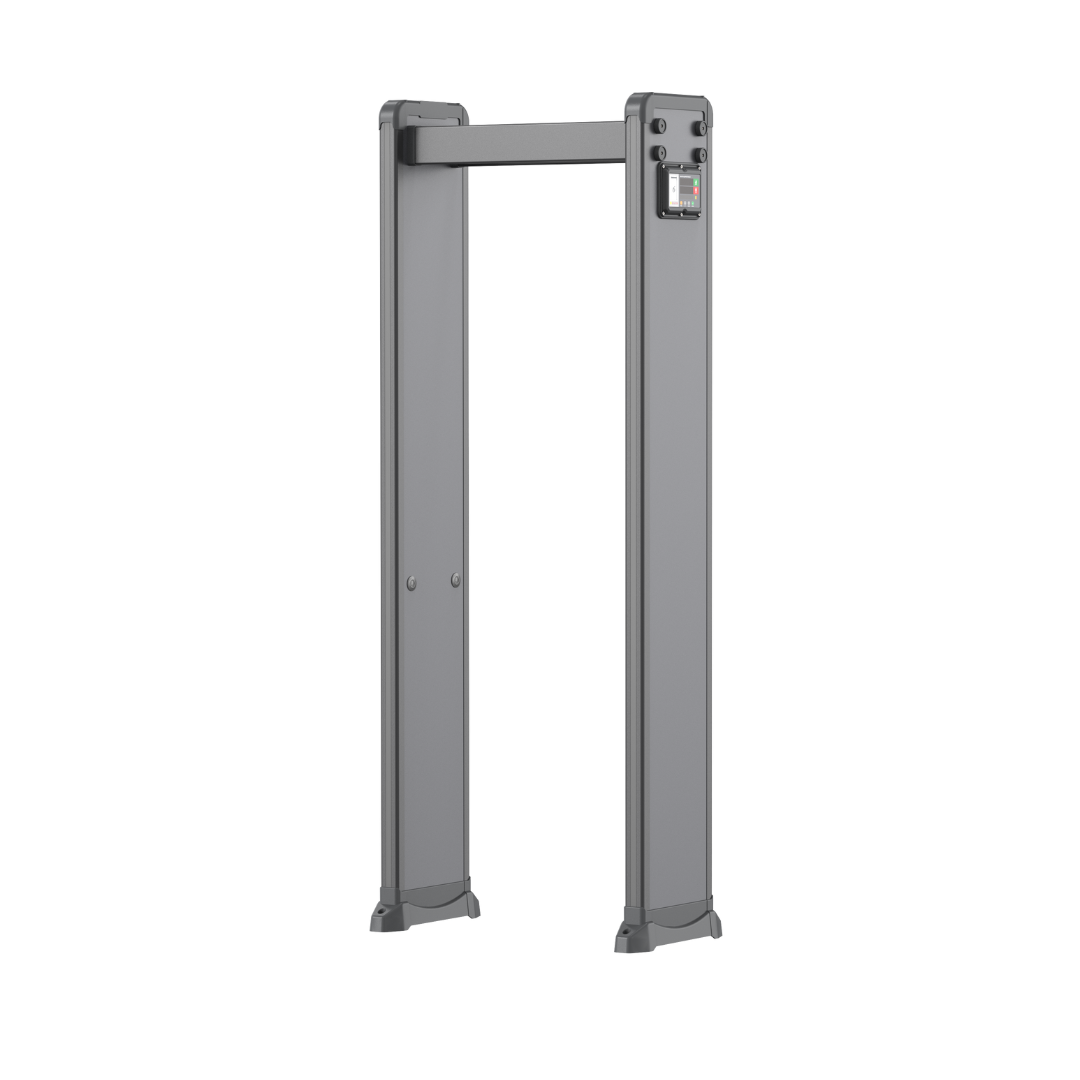

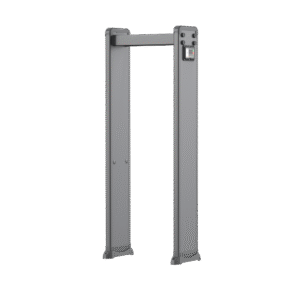

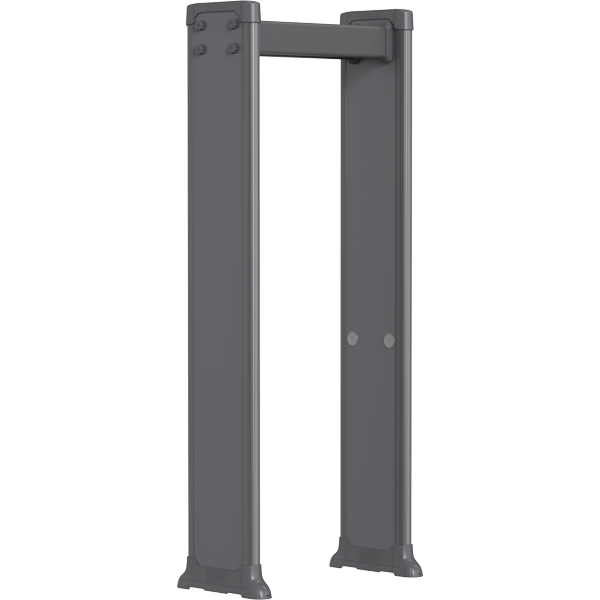

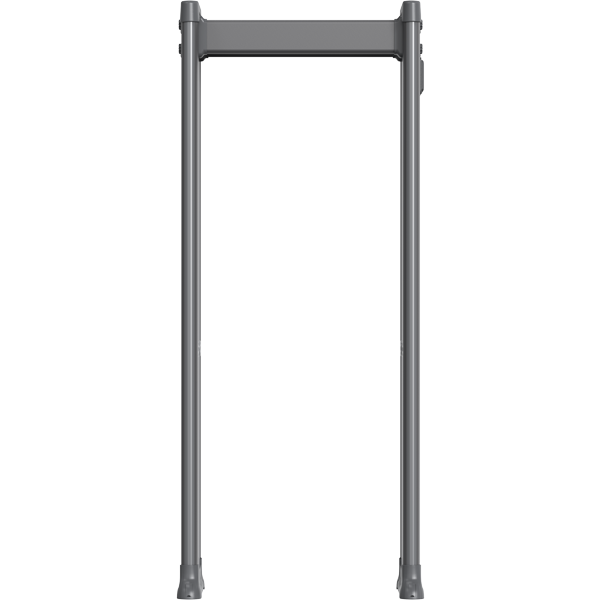

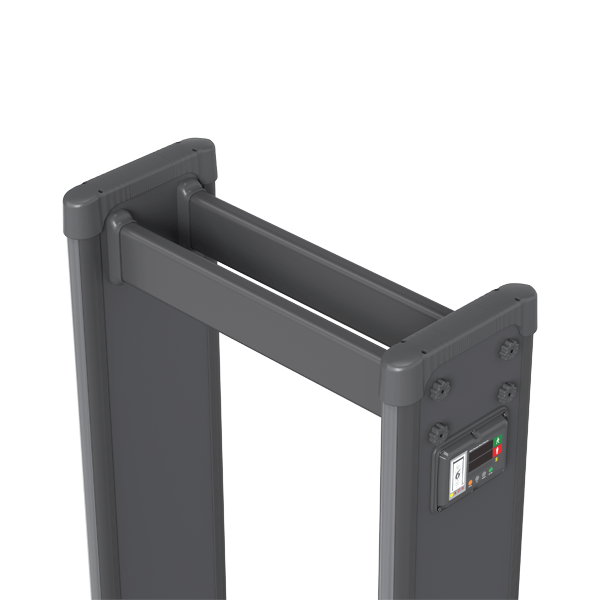

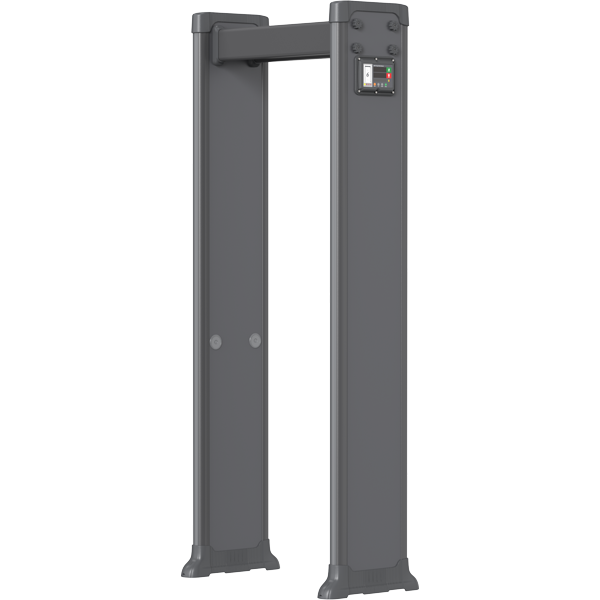

The walk-through metal detector ProScan Global 368SWA is a specialized security screening solution featuring a waterproof side panel digital control box. This model is meticulously engineered for high-performance security checkpoints that demand both precision and environmental resilience. With its high-definition digital interface integrated into the side panel, the 368SWA offers a streamlined aesthetic while providing robust protection against moisture and dust, making it ideal for diverse installation environments.
Key technical features
- Environmental data display: The system is equipped with an environmental data display function, ensuring high performance, high sensitivity, and excellent stability by monitoring surrounding conditions in real-time.
- Network management: It supports advanced network connectivity, enabling security teams to manage and monitor multiple devices seamlessly from a single PC.
- Smart discrimination technology: Pre-set parameters allow for precise adjustment of the weight, volume, size, and location of metal objects. This effectively eliminates false alarms caused by common items like keys, jewelry, and belt buckles.
- Safety and health standards: The system complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.

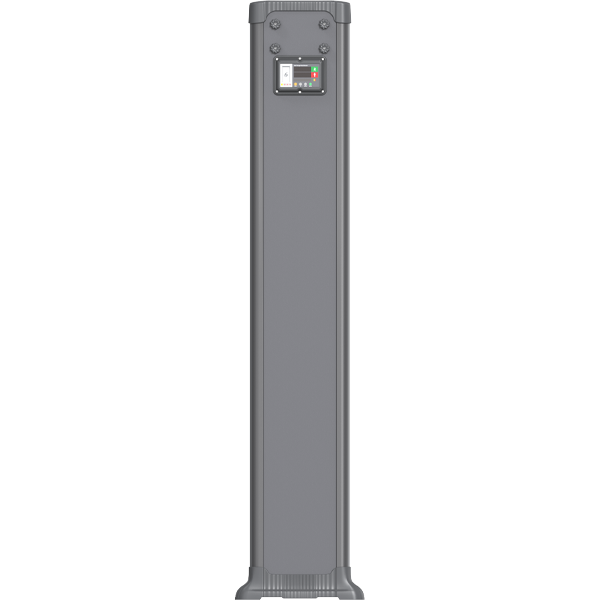

- Weatherproof reliability: The waterproof side-panel control box ensures consistent operation in humid or semi-outdoor settings, extending the equipment’s lifespan and reliability.
Installation condition 368SWA
To ensure the 368SWA delivers maximum accuracy, a professional walk through metal detector installation must meet the following site requirements:
- Structural stability: The detector must be installed on a flat, solid floor to prevent vibrations that could trigger false alarms.
- Metal clearance: Maintain a minimum distance of 10cm from fixed metal objects. For moving metal objects (like elevators or large gates), keep a distance of 0.5m to 2m.
- Electronic environment: Position the unit 0.5m to 4m away from sources of electronic interference, such as power lines, motors, or high-power monitors.
- Frequency settings: When deploying multiple units in close proximity, each device must be set to a unique working frequency to avoid mutual signal interference.
Certifications
ProScan Global is dedicated to upholding the highest international standards. The 368SWA fully complies with CE and FCC certifications, ensuring that the hardware meets rigorous global benchmarks for safety, health, and electromagnetic compatibility.
After-sales service system
We offer a comprehensive support network designed to ensure long-term operational success:
- Premium customer care: Beyond technical support, our after-sales system provides proactive maintenance and responsive customer care to keep your systems running smoothly.
- Strategic market insights: As a value-added service, ProScan Global provides clients with target market research, helping you understand local security trends and optimize your business.
Shipping
To facilitate global accessibility and safe delivery, ProScan Global provides flexible logistics solutions:
- Versatile shipping modes: We offer distribution via Sea, Air, and Land freight to accommodate various timelines and budget requirements.
- Global reach: Our shipping network is optimized to deliver high-precision security equipment safely to your destination, ensuring it arrives ready for immediate deployment.
