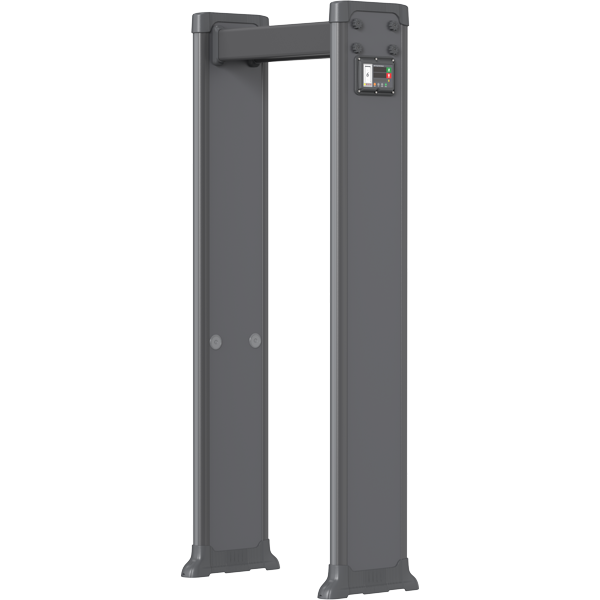

walk through metal detector 368sa

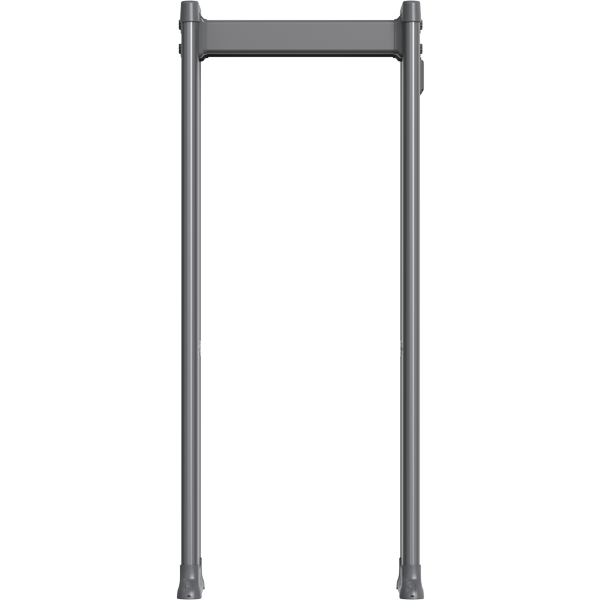

front of walk through metal detector 368sa

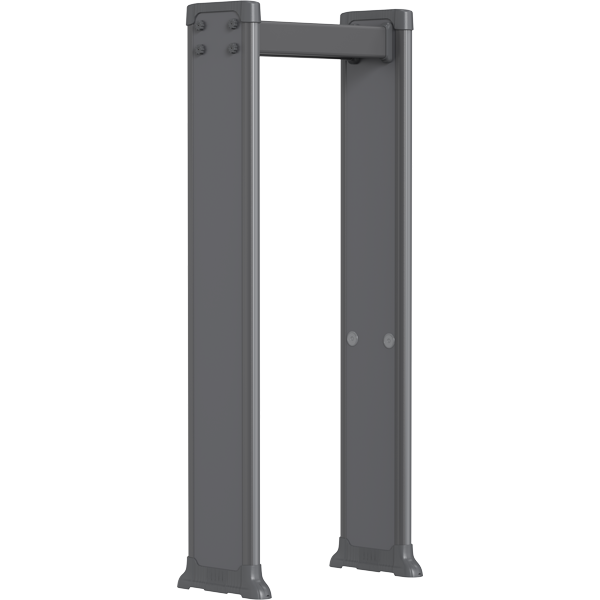

right of walk through metal detector 368sa

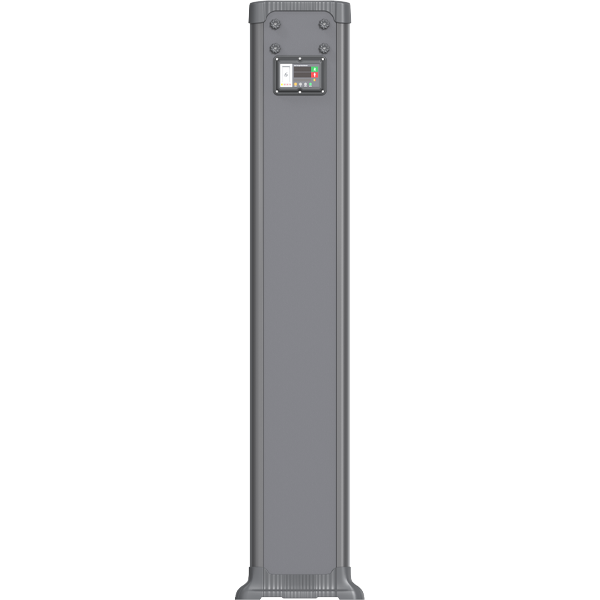

back of walk through metal detector 368sa

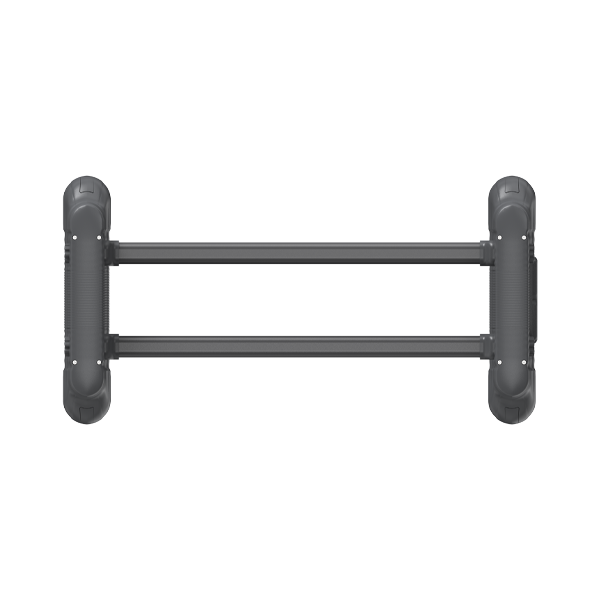

top of walk through metal detector 368sa

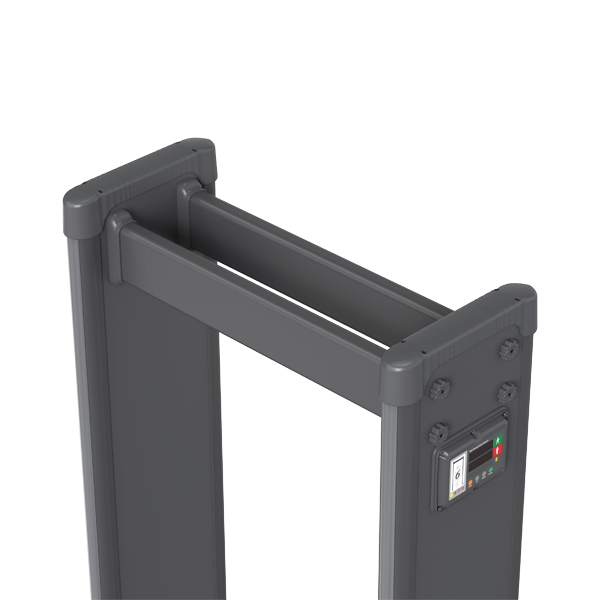

screen of walk through metal detector 368sa

Side Panel Digital Control Box 368SA

Model: 368SA

Zone: 1 to 93 zone

Price: Contact us for the most accurate price.

Place: Ports, courts, prisons, conference halls, public buildings, stadiums, factories, hotels, restaurants, entertainment venues, theme parks and other necessary public places for security purposes.

Technical: Self-diagnoses, zone sensitivity adjustment, real-time data view.

Supply ability: Daily output 200-300pcs

Dimension:

  • External size (H*W*D): 2204*870*480mm.
  • Passage size (H*W*D): 2010*720*480mm (The width of passage can be custom from 700 – 1500mm).

Weight: Net weight 34kg, Gross weight 40kg.

Leadtime: 2-20 working days after receiving payment. (This timeframe may vary depending on your location and order quantity.)

Customs: Logo – brand, zone, dimension, coils, lights, battery management system.

The walk-through metal detector side panel digital control box 368SA is an ergonomically designed security gateway that prioritizes both structural stability and operator accessibility. A key feature of this unit is its side panel configuration, which places the digital control box at the side of the detection panel. This layout allows security personnel to easily monitor the high-visibility LED display and access the tactile physical buttons at eye level. By combining a robust 368mm base with a convenient side-mounted interface, the 368SA offers a practical, reliable, and highly efficient screening solution for professional security checkpoints.

Description

Model name 368SA
Display Digital control box 7 inch
Detection mode Automatic/ Infrared detection mode (4 options)
Maximum detection distance 20 – 2000mm (vertical)
Throughput 60 detection per min on the average.
Sensitivity level 0-255
Detection zone Adjustable (Up to 93 zone)
Smallest metal objects detected Φ22.25*T1.85 mm(Steel-nickel Alloy)
Power supply AC 100V to 240V (DC 12V/4.2A)/ 50HZ – 60HZ
Operating current 0.8A
Operating power 12W
Operating time 24/7 operation capability
Detection sound alert 16 types of alarm tones (adjustable), 20 levels of volume (max 80 dB)
Detection visual indicator 2 sets of LEDs (red) evenly distributed on left and right door panels
Detected contrabands Ferrous and non-ferrous metal weapons
Enclosure material Flame retardant ABS polymer, medium density fiberboard, PVC
Operating frequency 0-99
Operating temperature -20 to 65 C
Packaging dimensions(L*W*H) 2280*580*200mm.

The walk-through metal detector ProScan Global 368SA is a high-performance security screening solution featuring a specialized side panel digital control box. This model is designed to provide seamless multi-zone intelligent detection while maintaining an ergonomic and modern profile. With its high-definition digital interface and precise detection capabilities, the 368SA is the ideal choice for high-traffic environments such as stations, and large-scale public venues where security and efficiency are top priorities.

Key technical features

  • Environmental data monitoring: The system is equipped with an environmental data display function, offering high performance, high sensitivity, and excellent stability by constantly analyzing and adapting to surrounding conditions.
  • Network connectivity: It supports advanced network connectivity, enabling multiple 368SA devices to be managed and monitored simultaneously from a single PC for centralized security operations.
  • Smart false alarm suppression: Pre-set parameters allow for the adjustment of weight, volume, size, and location of metal objects. This technology effectively eliminates false alarms caused by personal items like keys, jewelry, and belt buckles.
  • Safety and compatibility: The system complies with EMC electromagnetic radiation standards and utilizes low magnetic field technology. It is certified harmless to pacemaker wearers, pregnant women, and magnetically sensitive materials such as floppy disks, film, and videotapes.
  • Intelligent self-diagnosis: Upon startup, the system performs an automated self-diagnosis to ensure all detection zones and sensors are operating at peak efficiency.

Installation condition 368SA

To ensure the 368SA operates with maximum precision and avoids interference, a professional walk through metal detector installation must adhere to the following environmental requirements:

  • Foundation stability: The unit must be installed on a flat, solid floor to eliminate vibrations that could lead to false alarms.
  • Metal clearance: Maintain a minimum distance of 10cm (4 inch) from stationary metal objects. For large moving metal structures (such as elevators), a distance of 0.5m to 2m (20 – 79 inch) is recommended.
  • Interference mitigation: Position the detector 0.5m to 4m (20 – 157 inch) away from electronic interference sources, including power lines, motors, or high-power monitors.
  • Frequency settings: When deploying multiple units side-by-side, each device must be set to a unique working frequency to prevent mutual signal interference.

Certifications

ProScan Global is dedicated to meeting international quality and safety benchmarks. The 368SA fully complies with CE and FCC certifications, ensuring that our hardware adheres to rigorous global standards for electromagnetic compatibility and operational safety.

After-sales service system

We believe in providing a comprehensive support ecosystem to ensure your long-term security success:

  • Dedicated customer care: Our post-sale support includes rapid technical assistance to keep your business in top condition.
  • Strategic market support: Beyond technical help, ProScan Global provides clients with target market research insights, helping you understand local security trends and optimize your strategic deployment effectively.

Shipping

To meet the diverse logistical needs of our global partners, ProScan Global offers flexible and reliable shipping solutions through multiple transportation modes:

  • Sea freight: An economical solution for large-scale and bulk distribution.
  • Air freight: Priority shipping for urgent security facility upgrades.
  • Land transport: Reliable regional delivery for local door-to-door installations.
